Operating Voltage:600V AC

Current Rating:3250A

Protection Type:C

Break Capacity:50kA at 480V AC

Insulation Class:Class H

Number of Poles:3

Operation:Manual Trip

Size (Width x Depth x Height):12 x 14 x 20 inches

Weight:35 lbs

Approval Standards:UL, CE, ISO 9001

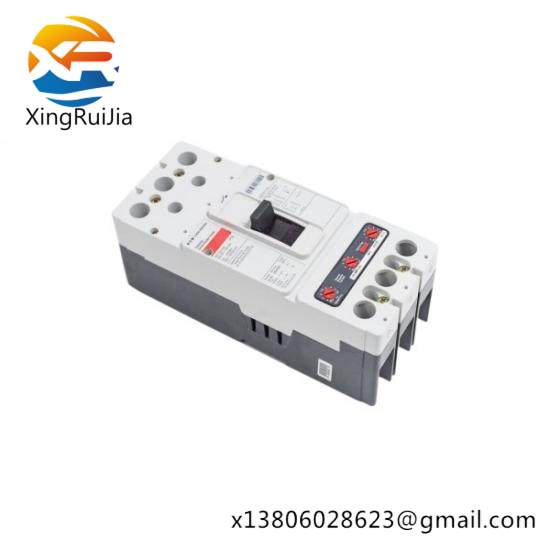

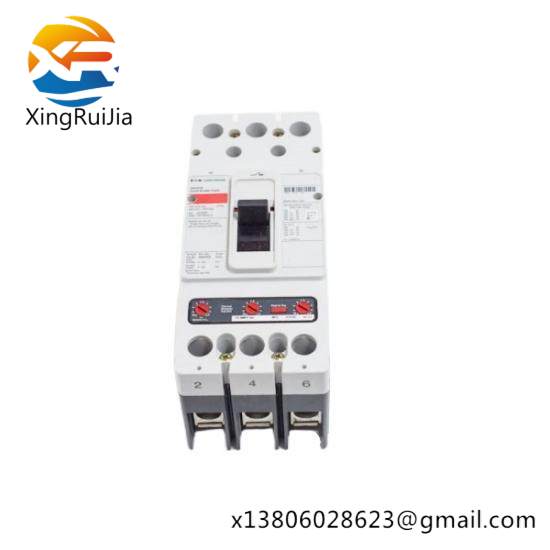

    The Eaton JD3250D C circuit breaker is designed with a compact, rugged construction that ensures reliable performance under harsh environmental conditions. Its molded case design provides superior protection against external impacts and maintains consistent electrical insulation.

    Featuring a Type C trip characteristic, this breaker is highly responsive to both overloads and short circuits, minimizing downtime and protecting sensitive equipment from damage. It supports a wide range of current ratings, making it suitable for various industrial and commercial applications.

    This circuit breaker is rated for 2 poles, 3 poles, and 4 poles, offering flexibility in different circuit configurations. With its class 1 insulation, it ensures safety in areas where flammable gases or liquids may be present.

    The IP20 protection class signifies its ability to prevent solid foreign objects from entering the enclosure, safeguarding internal components from dust and splashes. The operating temperature range from -25°C to +40°C ensures its reliability across different climates.

    Easy installation and maintenance are facilitated by standard mounting options, ensuring quick integration into existing systems. Backed by Eaton’s commitment to quality, the JD3250D C circuit breaker is an essential component for ensuring safe and efficient power distribution.
