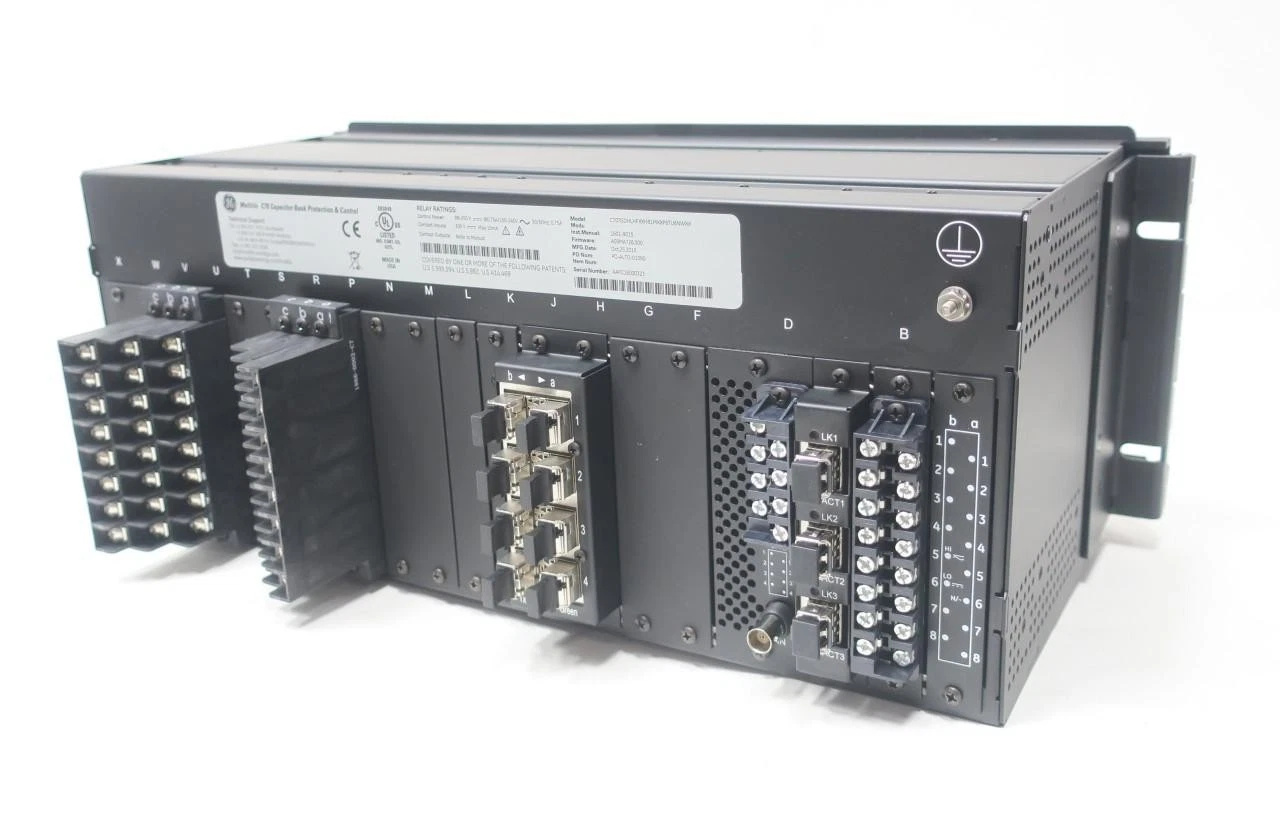

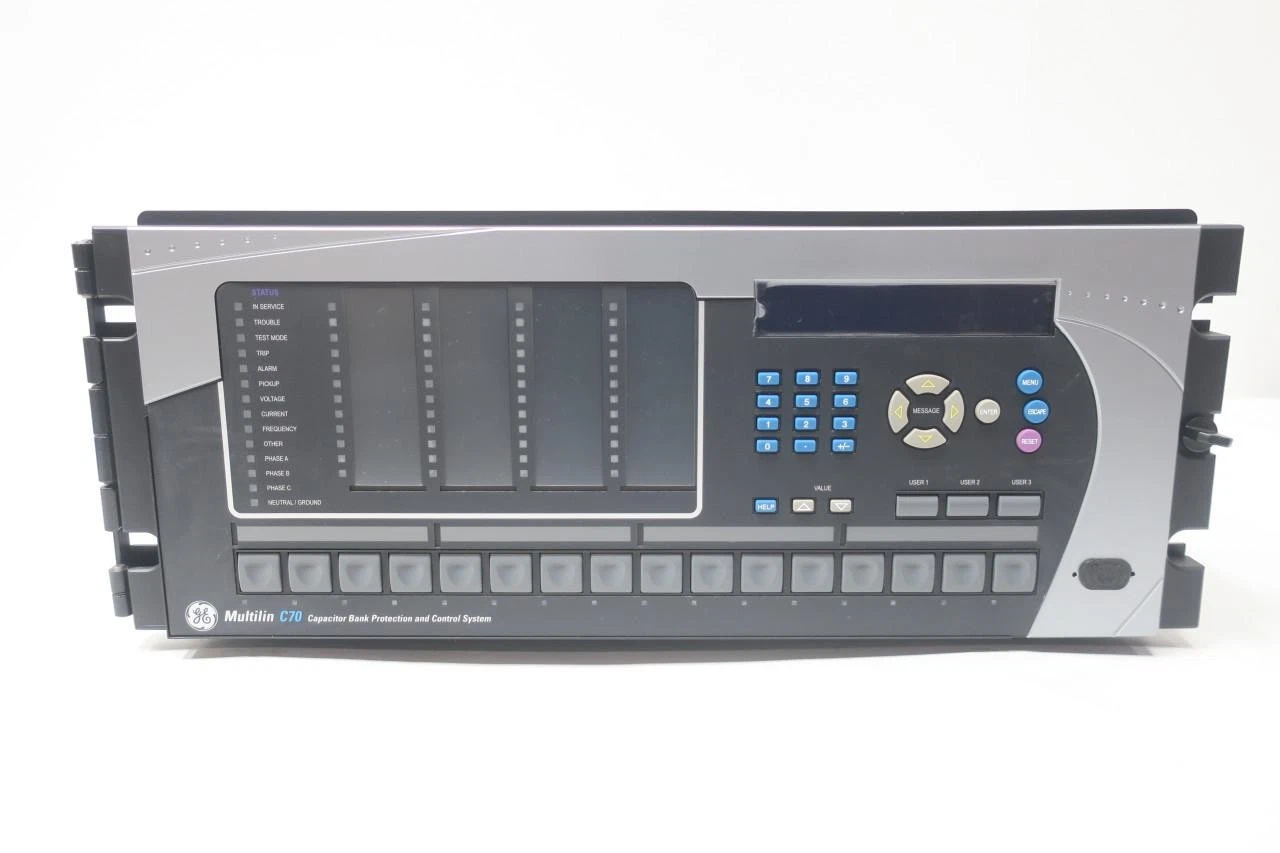

Ge C70TGDHLHFXXH81MXXP6TU6GWXX Relay

GE C70TGDHLHFXXH81MXXP6TU6GWXX is a relay specifically designed for capacitor bank protection and control, belonging to the Multilin series of products under GE (General Electric).

Ge C70TGDHLHFXXH81MXXP6TU6GWXX

GE C70TGDHLHFXXH81MXXP6TU6GWXX is a relay specifically designed for capacitor bank protection and control, belonging to the Multilin series of products under GE (General Electric). This model of relay aims to prevent capacitor banks from damage caused by electrical faults (such as overvoltage, phase loss, etc.) during operation through precise monitoring and control, while optimizing the power factor and improving the overall efficiency of the power system.

______________________________________________________________________________________________

Core Parameters

Parameter	Description
Rated Current	0.5A – 30A (optional)
Rated Voltage	230V / 460V AC
Control Logic	Multiple logic controls (such as time delay, timing, countdown, etc.)
Communication Protocol	Supports Modbus RTU, Profibus, Ethernet/IP, etc.
Protection Functions	Overvoltage protection, undervoltage protection, phase loss protection, overcurrent protection
Display Mode	LCD/LED digital display or graphical display (depending on the specific sub-model)

______________________________________________________________________________________________

Structure and Composition

Power Supply Module: Provides power for internal circuits and displays.
Control Logic Module: Where the core chip is located, responsible for logical judgment and execution.
Communication Module: Responsible for data interaction with upper computers or other devices.
I/O Interface: Connects external devices such as capacitor banks and current transformers (CT).

______________________________________________________________________________________________

Application Fields

Manufacturing Industry: Used for power factor correction of automated production line equipment.
Energy Management: Monitors and optimizes power factors in substations and power distribution systems.
Building Automation: Suitable for power system management of large buildings and shopping malls.

______________________________________________________________________________________________

Installation and Maintenance Recommendations

Installation

Environmental Requirements: Should be installed in a dry, well-ventilated environment, avoiding high temperature and humidity.
Power Connection: Connect the power supply strictly according to the circuit diagram to ensure that the voltage level matches the rated value of the equipment.
Ground Protection: All metal casings should be reliably grounded to prevent electric leakage.

Maintenance

Regular Inspection: Check the terminal blocks and connection status every six months to ensure no looseness.
Firmware Upgrade: Upgrade according to the latest firmware version released by the manufacturer to fix known vulnerabilities.
Fault Recording: It is recommended to record fault logs with upper computer software to facilitate later problem analysis.

————————————————————————————————-
