Fieldbus Compatibility:EtherNet/IP, Modbus/TCP, Modbus/UDP

Integrated Switch Ports:3-port switch for optimized cabling

Configuration Method:Auto-configuration of I/O modules via scanner (master)

Web Interface Access:Accessible through web interface for easy management

DHCP Support:DHCP capable for dynamic IP addressing

Configurable I/O Cycle:(0.5 – 4 ms) for flexible operation

Minimum Fieldbus Cycle Time:1 ms for high-speed data transfer

Power Consumption:2 W for low energy use

Cable Length Capacity:Max. 100 m between 2 stations for extensive network coverage

Transfer Rate:10/100 Mbit/s for reliable data transmission

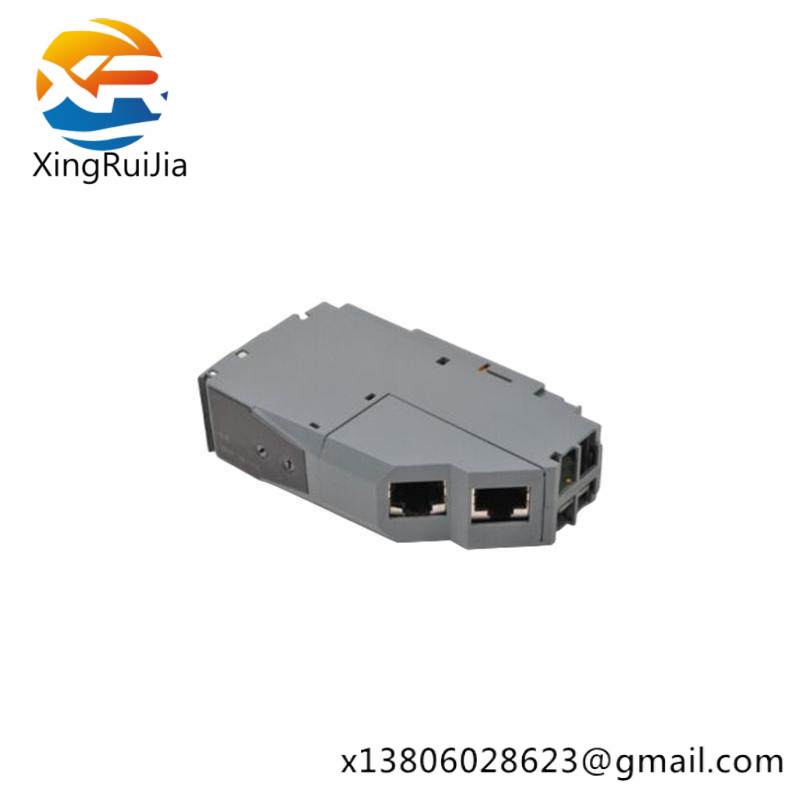

    The B&R X20BC8084 BUS CONTROLLER is a sophisticated solution for industrial automation, featuring an integrated 3-port switch that optimizes cabling efficiency. It enables auto-configuration of I/O modules, streamlining installation processes.

    Equipped with a web interface, the controller allows for easy configuration and monitoring, enhancing operational flexibility. Its DHCP capability ensures seamless network integration, facilitating a smooth setup process.

    With configurable I/O cycles ranging from 0.5 to 4 milliseconds, the controller adapts to various system requirements, ensuring high-speed data transfer. The minimum fieldbus cycle time of 1 millisecond guarantees fast response times, crucial for real-time applications.

    The controller’s power consumption of 2 watts per bus segment supports energy-efficient operations, reducing overall system costs. Its maximum cable length of up to 100 meters between two stations ensures extensive coverage without compromising signal integrity.

    Offering transfer rates of 10/100 Mbit/s, the B&R X20BC8084 BUS CONTROLLER ensures reliable data transmission, enabling seamless integration with other networked devices in complex industrial setups.
