Fieldbus Compatibility:Modbus/TCP, Modbus/UDP

I/O Configuration:Fieldbus-based, configurable

DHCP & Bootp Capabilities:DHCP capable, Bootp enabled

Double Switch Integration:Efficient cabling with integrated double switch

Configurable I/O Cycle:0.5 to 4 ms

Response Time:<1 – 8 ms (dependent on load)

Validity Check:Before executing command sequences

Power Consumption:Bus: 2 W

Cable Length:Max. 100 m between 2 stations

Transfer Rate:10/100 Mbit/s

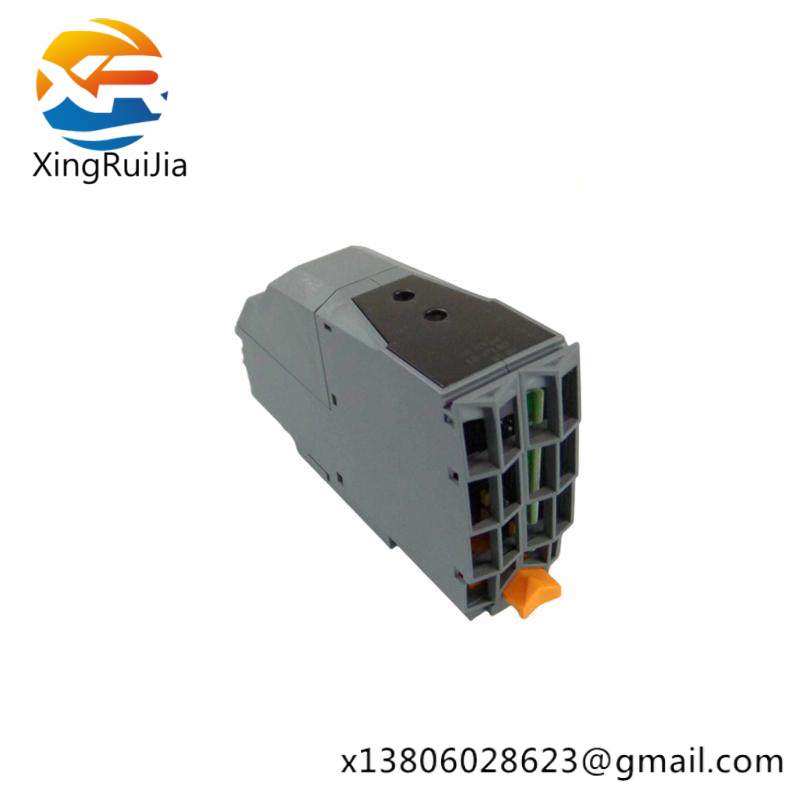

    The B&R X20BC0087 Bus Controller is engineered for industrial settings requiring high-speed, reliable data communication. With its support for Modbus/TCP and Modbus/UDP fieldbuses, it ensures compatibility with a wide range of automation systems.

    Featuring a DHCP-capable design, this controller automatically configures IP addresses for connected devices, simplifying network setup and management. Its Bootp capability further enhances network deployment efficiency.

    Equipped with an integrated double switch, the X20BC0087 enables efficient cable management, reducing wiring complexity and maintenance efforts. The configurable I/O cycle allows customization based on specific application needs, optimizing performance.

    With a minimum response time of under 1 millisecond, the controller ensures rapid data processing and efficient control loop response. Its validity check feature for command sequences prevents errors and ensures smooth operation.

    Offering a maximum power consumption of just 2 watts, the B&R X20BC0087 Bus Controller is energy-efficient, contributing to lower operational costs. The ability to handle cable lengths up to 100 meters between stations supports extensive network configurations.
