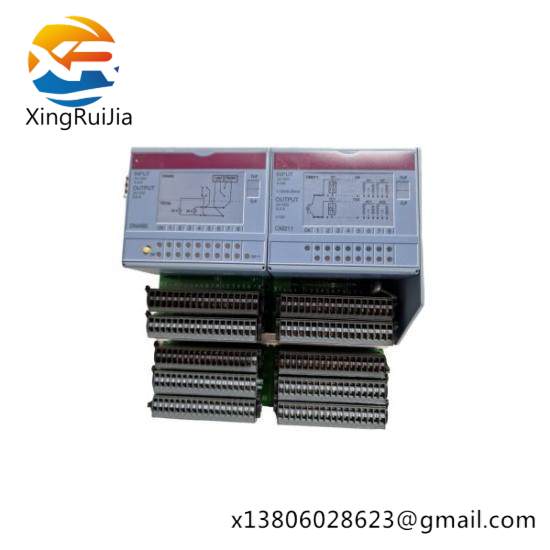

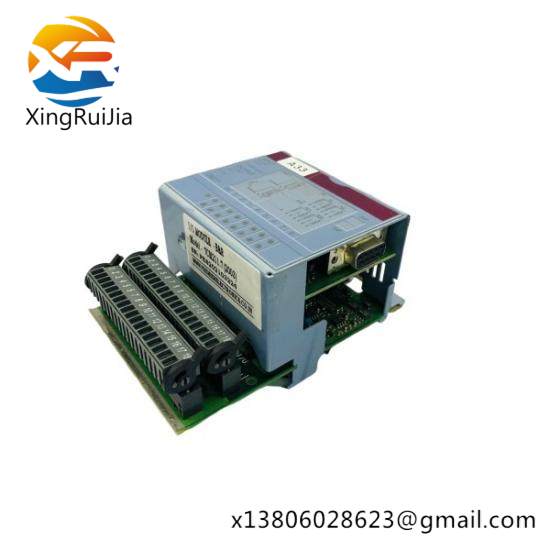

Product Type:Output Module

Model Number:7CM211.7

Power Supply Voltage:24 VDC

Output Capacity:Transistor Outputs, 24 VDC, 0.5 A

Number of Outputs:8

Counter Channels:4 (One-channel or Two-channel)

Encoder Compatibility:2 Incremental Encoders, 20 kHz

Input Type:Sink, 3 one-channel or 2 two-channel counters

Comparator Function:Present

Short Circuit Protection:Included

Analog Input Range:+/-10 V / 0 to 20 mA

Analog Output Resolution:12-bit

Terminal Block Compatibility:Order 2x TB718 separately

    Integrating seamlessly into a wide range of industrial control systems, the B&R PLC Module 7CM211.7 is engineered for precision and reliability. This module offers an efficient way to manage input signals, process data, and execute control commands, making it ideal for complex automation scenarios.

    Featuring a compact design that optimizes space without compromising functionality, this module is equipped with high-speed input response times, ensuring quick and accurate signal processing. Its versatile counter and encoder interface capabilities make it suitable for tasks requiring precise timing and position control.

    The 7CM211.7 supports both one-channel and two-channel counters, enabling flexible configuration to meet diverse application requirements. Additionally, the inclusion of two incremental encoders at 20 kHz provides precise feedback for motion control systems, enhancing overall system accuracy and responsiveness.

    With its 8 transistor outputs, the module delivers robust power handling capabilities, supporting a wide range of actuators and devices. The comparator function and short circuit protection measures ensure operational safety and system integrity, even under demanding conditions.

    The module’s compatibility with 2x TB718 terminal blocks allows for easy connection and customization, while the 12-bit analog input and output resolution ensures high accuracy in data conversion and signal representation. Ideal for integration into existing systems or as a standalone component, the B&R PLC Module 7CM211.7 is a powerful tool for enhancing industrial automation efficiency.
