Communication Protocol:Profibus DP

Operating Voltage:24VDC

Data Transfer Rate:12 Mbit/s

Terminal Capacity:64 bus terminals

Expansion Compatibility:Supports K-Bus extension

Mechanical Interface:Compact DIN rail mountable

Environmental Conditions:Operating temperature: -25°C to +60°C, storage temperature: -40°C to +85°C

Protection Class:IP20

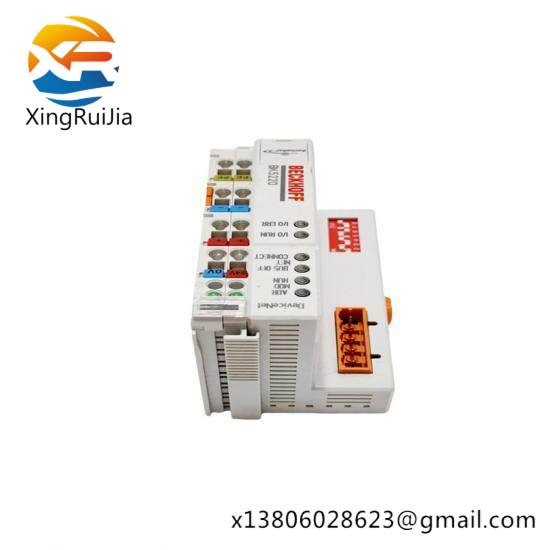

    The BK5220 Bus Coupler from Beckhoff is engineered to provide robust DeviceNet communication in industrial automation environments, ensuring reliable data exchange between devices.

    With support for various operating modes, including Bit Strobe, Polling, Cyclic, and Change of State (COS), this coupler enhances system flexibility and responsiveness.

    Featuring 64 I/O stations, it supports extensive connectivity, accommodating multiple devices with ease. The inclusion of 64 bus terminals ensures efficient data flow within the network.

    The BK5220 is equipped to handle up to 512 bytes of input and output data, providing ample space for information exchange. It supports a total of 1,020 digital peripheral signals, enhancing system capability.

    The coupler is powered by a versatile 24 V DC supply or a 11…25 V range compatible with DeviceNet specifications, ensuring compatibility across different systems. Its input current management feature maintains optimal performance under varying conditions.

    Compact yet robust, the BK5220 weighs approximately 130 g, making it easy to integrate into various industrial settings without compromising on functionality.
