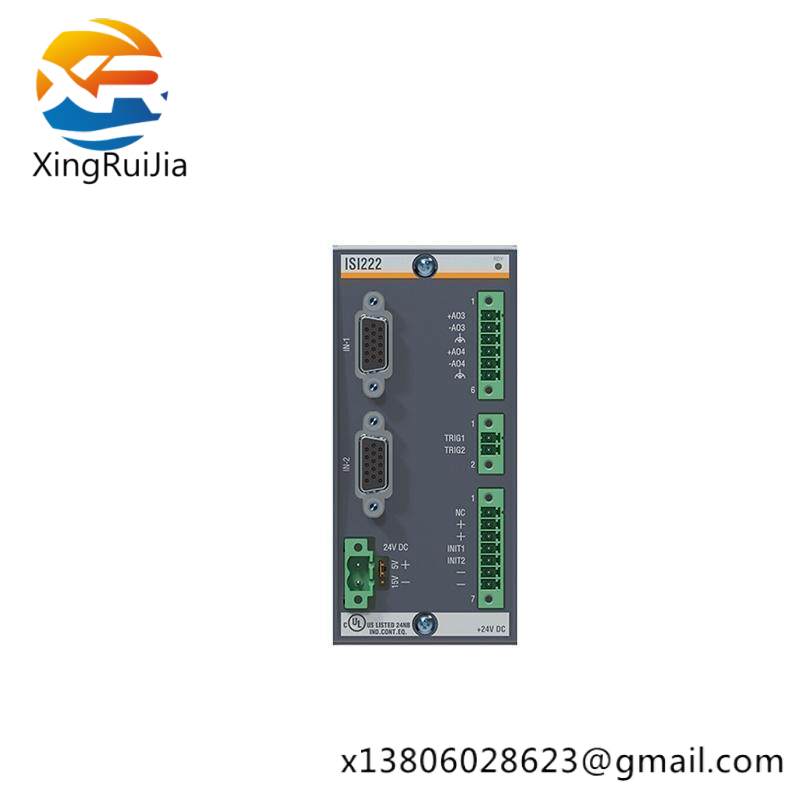

Product Type:Encoder Interface Module

Model:ISI222

Brand:BACHMANN

Counter Resolution:32-bit

Output Voltage Range:+5 V to +15 V Selectable with Jumper, 24 V Looped Through

Output Voltage:±10 V

Output Current:Max. ±2 mA

Application Frequency:1 MHz

Positioning Accuracy:32-bit Resolution

Encoder Supply:5V / 15V / 24V

Digital Outputs:2x ±10V, 14-bit Resolution

Predefined Parameters:Gate Time, Period, Velocity

Communication Interface:RS422 Level

Inputs:2x Incremental Counters A, A/B/N, Position Feedback

Trigger and Homing Support:2x Digital Inputs for Triggering and Homing

    The Bachmann ISI222 Encoder Interface Module is engineered for high-performance motion control systems, offering unparalleled accuracy and reliability. With its dual incremental signals and versatile power supply options, this module caters to a wide range of industrial machinery requirements.

    Featuring a compact design and robust construction, the ISI222 ensures durability and ease of integration into existing systems. Its high-resolution counter capability and customizable output voltages make it suitable for applications demanding precise positioning and speed control.

    Designed with user convenience in mind, the module supports multiple digital input configurations, enabling seamless synchronization with other components in complex automation setups. Whether you’re looking to enhance the efficiency of your production line or improve the precision of your machinery, the Bachmann ISI222 Encoder Interface Module is the ideal choice.

    To ensure optimal performance, our module is compatible with various encoder types, providing compatibility and flexibility in selection. Additionally, it supports various acceleration modes and includes a feature for encoder supply, ensuring stable operation under diverse conditions.

    Backed by Bachmann’s commitment to quality and innovation, the ISI222 Encoder Interface Module comes with comprehensive support and documentation, making it an accessible solution for both experienced engineers and those new to industrial control systems.
