Model Type:SLC 500

Model Number:1746-OX8

Manufacturer:Allen-Bradley

Isolation Resistance:Greater than 1 MOhm

Output Configuration:Relay

Channel Count:8

Operating Voltage:Up to 60 VDC

Operating Current:Backplane: 190 mA, Continuous per output: 0.25 A @ 60°C, Continuous per module: 8 A @ 60°C

Communication Protocols:[“ControlNet”,”DeviceNet”,”Universal Remote I/O”]

Temperature Range:0 – 60°C

Enclosure Type:Open Type

Mounting Method:Chassis

Environmental Conditions:5 – 95% relative humidity (non-condensing)

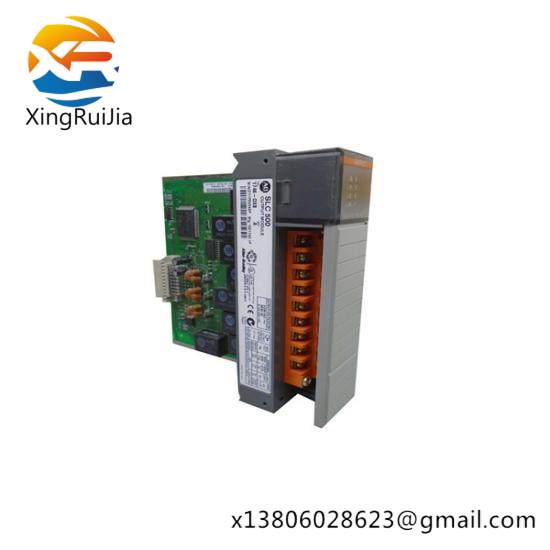

    The Allen-Bradley 1746-OX8 SLC 500 Output Module is engineered for industrial automation systems, offering enhanced reliability and performance.

    Equipped with isolated relay outputs, this module significantly improves system safety by preventing ground loops and ensuring signal integrity.

    Featuring a compact open-type enclosure, it facilitates easy integration into various control systems without compromising on performance.

    With a temperature rating from 0°C to 60°C and environmental conditions suitable for industrial environments, the module ensures consistent operation under diverse conditions.

    The high isolation voltage between communication circuits and backplane enhances compatibility with different devices, making it an ideal choice for complex automation setups.

    Built for efficiency, the Allen-Bradley 1746-OX8 delivers precise current ratings and voltage levels, guaranteeing optimal power distribution and minimizing energy loss.
