Series:MicroLogix 1200

Product Type:Analog Input Module

Number of Channels:32

Input Voltage Range (DC):19…30 V

Isolation Conforming to:EN/IEC 61131-2 Type 1

Discrete Input Voltage:24 V DC Positive Sensor Power Supply

Discrete Input Current:3.5 mA

Power Dissipation:(1 W + 0.1 W x No of channels used)

Current Consumption:135 mA @ 5 V DC, 160 mA @ 24 V DC

Weight:0.3 kg

Dimension (D x H x W):41 x 264 x 94 mm

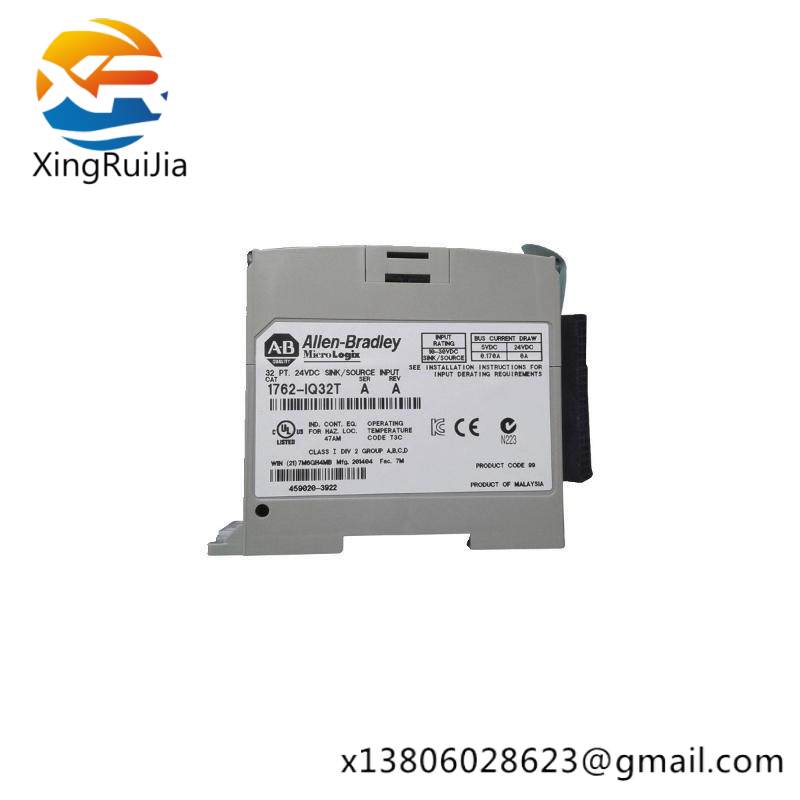

    The Allen-Bradley MicroLogix 1762-IQ32T DC Input Module is a critical component for industrial automation systems, engineered to handle up to 32 digital input signals efficiently. This module is designed to work seamlessly within the MicroLogix family of controllers, providing robust signal acquisition capabilities for various industrial applications.

    Featuring a compact yet durable design, the 1762-IQ32T offers excellent signal isolation and can withstand a wide operating temperature range, making it suitable for challenging environments. It supports 24VDC input, ensuring compatibility with a broad spectrum of sensors and devices commonly found in industrial settings.

    With its terminal block termination, this module simplifies installation and maintenance, allowing for quick connection of external signals without the need for additional adapters. The electrical isolation feature ensures the safety and integrity of your control system, safeguarding against potential electrical disturbances and protecting sensitive components.

    Ideal for applications requiring high-speed data acquisition, the Allen-Bradley MicroLogix 1762-IQ32T DC Input Module is engineered for reliability and efficiency. It is compatible with Allen-Bradley’s comprehensive line of programmable logic controllers (PLCs), enabling seamless integration into existing automation systems.

    This module is part of the MicroLogix 1200 series, known for its versatility and cost-effectiveness in addressing the needs of medium-sized control applications. Its straightforward programming interface, combined with Allen-Bradley’s extensive support resources, makes it an accessible choice for both experienced engineers and those new to industrial automation.
