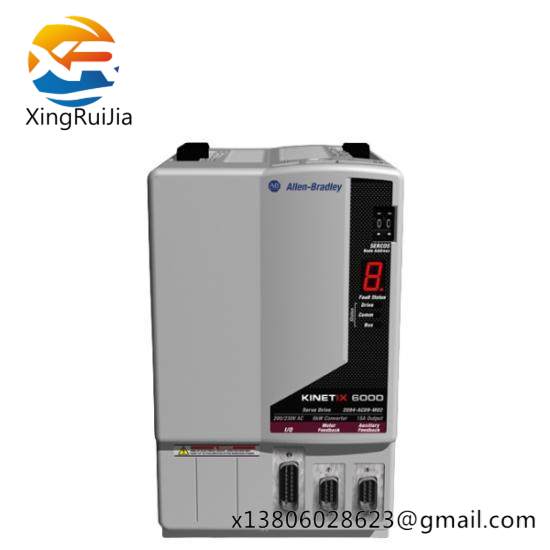

    The Allen-Bradley 2094-AC09-M02 Integrated Axis Module is engineered for precision and reliability in demanding industrial environments. Its robust design incorporates an array of essential connectors for seamless integration into complex systems, including Contactor enable (CED), DC bus/AC input power (IPD), Control power (CPD), Motor power (MP), Motor/resistive brake (BC), and I/O (IOD) connectors. This modular design ensures that users can easily connect and manage critical components, optimizing performance and enhancing system capabilities.

    With its integrated Safe-Torque Off functionality, the 2094-AC09-M02 module adheres to stringent safety standards, providing peace of mind in high-risk applications. This feature is certified to ISO 13849-1 PLe/SIL3, ensuring that the system can safely shut down under unexpected conditions without compromising on efficiency.

    Featuring a 6 kW converter, this module is capable of handling high-power demands efficiently, delivering exceptional performance across a wide range of industrial operations. Its 15 A inverter allows for precise speed control, making it suitable for a variety of motion control tasks. With an operating frequency of 47 to 63 Hz, it ensures smooth operation even at varying speeds, and the 325 Volt DC nominal bus output voltage provides ample power for motor control.

    Designed for long-term durability, the 2094-AC09-M02 module boasts a 20-year data retention capability, allowing for stable and reliable operation over extended periods. Its versatile digital input/output interfaces support seamless integration with host PCs and PLC controllers, facilitating easy setup and monitoring of system statuses. The output frequency of 0 to 400 Hz enables precise control over motors, enhancing overall system responsiveness and efficiency.

    This module is equipped with comprehensive diagnostic indicators for communication, drive, and other status updates, ensuring that users have real-time access to critical information. It is compatible with Logix 5000 controllers and can be easily mounted using rail mount technology, accommodating various installation scenarios. With its 5.1-pound weight and compact size, the Allen-Bradley 2094-AC09-M02 Integrated Axis Module is designed for convenient handling and efficient use in diverse industrial settings.
