Power Rating:22 kW (30.0 HP)

Operating Voltage Range:100…600V

Motor Control:Broad range of motor control capabilities

Temperature Operation:Up to 70°C (158°F)

Communication Protocols:RS485, Ethernet

Safety Features:Safe-Torque Off (STO) functionality

Enclosure Rating:IP20/NEMA UL Open Type

Installation:Panel Mount

I/O Options:Discrete Inputs x7, Discrete Outputs x2, Opto Outputs x2, Relay Outputs x2, Analog Inputs x2, Analog Output x1

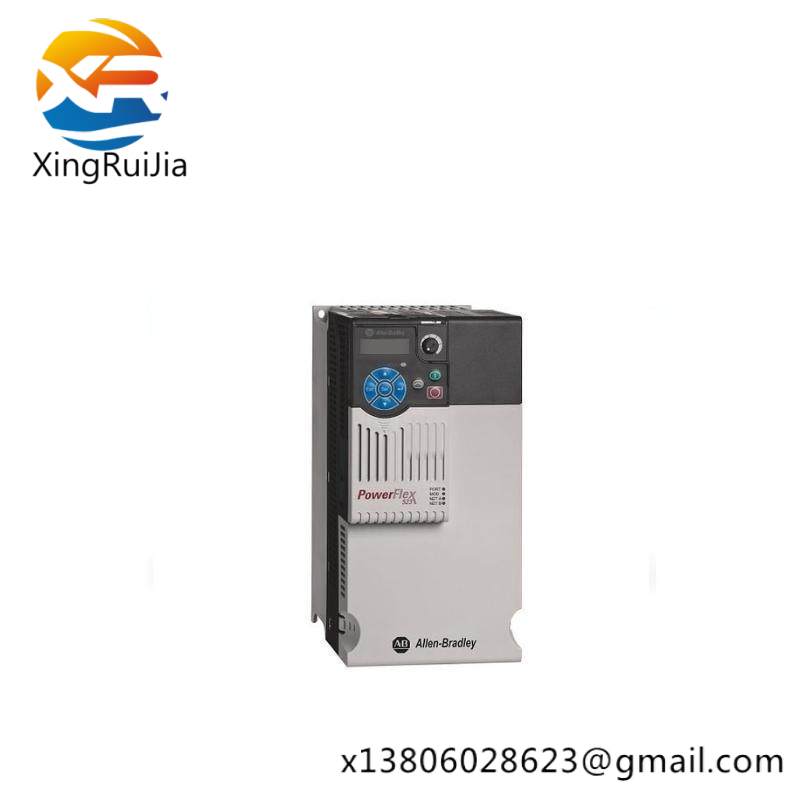

    The Allen-Bradley AB 25A-D043N114 PowerFlex 523 AC Drive is engineered for optimal performance in demanding industrial environments. Its modular design supports quick installation and easy configuration, ensuring seamless integration into various systems. The drive’s USB programming capability facilitates straightforward setup and customization to specific applications.

    With a robust power rating from 0.2…22 kW, it caters to a wide range of motor control requirements, providing efficient energy consumption and high torque capabilities. Its compact footprint makes it suitable for space-constrained areas, while its operation at temperatures up to 70°C ensures reliability across different environmental conditions.

    Equipped with an integral safety feature, the drive offers Safe-Torque Off (STO), which enhances safety by ensuring controlled motor stopping during unexpected power interruptions. This feature is critical for maintaining worker safety and system integrity.

    The AB 25A-D043N114 includes an integrated communication port, supporting RS485 and Ethernet interfaces for seamless data exchange and connectivity with other devices. This capability enables advanced control strategies and remote monitoring, optimizing operational efficiency.

    Designed with user convenience in mind, the drive provides seven discrete inputs for signal monitoring and two discrete outputs for controlling external devices. It also features two opto outputs and two relay outputs for versatile control applications, making it a comprehensive solution for a variety of industrial automation tasks.
