Nominal Supply Voltage:120VAC / 240VAC, 1-Phase, 50-60Hz

Input Current:18 Amps

Output Power:2kW

Bus Capacitance:1880 µF

Bus Overvoltage Protection:400V DC

Energy Absorption Capability:125 Joules @ 115VAC, 51 Joules @ 230VAC

Operating Temperature Range:40-70°C (-40-158°F)

Relative Humidity Limits:5-95% without condensation

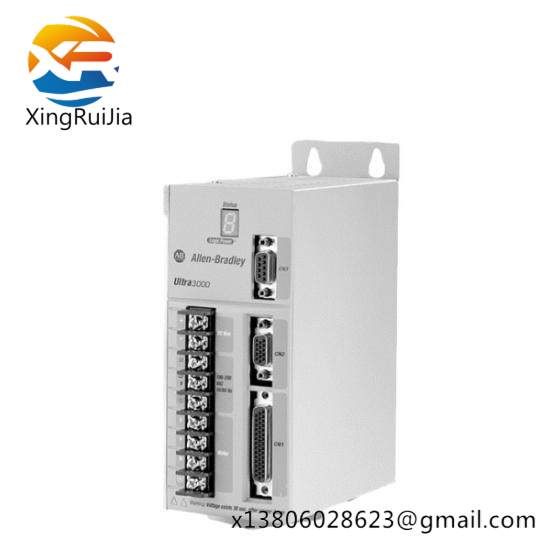

    Engineered for robust performance, the Allen-Bradley 2098-DSD-020X Digital Servo Drive excels in handling heavy-duty applications, ensuring reliable operation in demanding industrial environments.

    Featuring a Proportional+Integral+Derivative (PID) velocity regulator with a fast update rate of 250 µs, this drive achieves unparalleled precision in speed and position control.

    With 8 optically-isolated digital inputs and 4 optically-isolated N.O. relay outputs, the 2098-DSD-020X provides versatile connectivity for integrating with various control systems and devices.

    Supporting feedback position data from external encoders, the drive ensures accurate tracking and control of servo motors, making it ideal for applications requiring high positional accuracy.

    Designed with a compact size of 7.8 x 5.68 x 3.89 inches (198.12 x 144.27 x 98.1 mm) and weighing 2.1kg (4.6lbs), the 2098-DSD-020X is easily integrated into existing machinery without compromising on performance.

    Backed by Allen-Bradley’s commitment to quality, the 2098-DSD-020X comes with a robust fuse configuration including Class J and Class CC fuses, ensuring safety and reliability in every operation.
