Input Voltage:100-240VAC rms, 1-Phase

Frequency Range:47-63 Hz

Output Voltage:100-240VAC

Continuous Output Power:1kW

Continuous Output Current:5A

Intermittent Output Current:15A

Inputs:8 selectable general purpose

Outputs:4 selectable general purpose, relay output

Communication Ports:1 Serial (RS232 & RS485)

Size:9.54 x 14.2 x 5.46 inches

Weight:Not specified

RoHS Compliance:Not compliant

Enclosure Type:Not specified

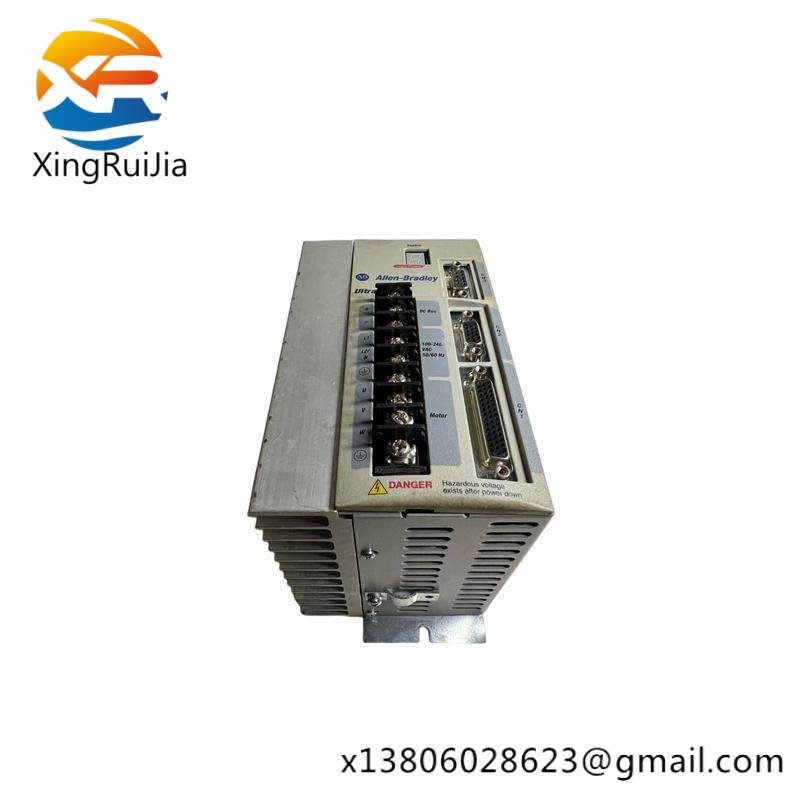

    The Allen-Bradley 2098-DSD-010X is a versatile digital servo drive designed for seamless integration into a wide array of industrial automation systems. Its compact design (144.27 x 72.64 mm) ensures efficient use of space on the production floor, while its robust construction withstands the rigors of demanding environments.

    With a frequency range of 47-63 Hz, this drive is adaptable to various operational speeds, ensuring optimal performance across different applications. The inclusion of 8 selectable general-purpose inputs and 4 selectable outputs, along with a relay output, provides ample connectivity options for controlling a multitude of peripheral devices.

    Equipped with an embedded multi-turn absolute encoder and an option to supply external logic power, the 2098-DSD-010X maintains accurate actuator positions even during power interruptions, ensuring continuous operation and minimizing downtime.

    Featuring a single serial communication port supporting both RS232 and RS485 standards, this drive offers flexibility in communication protocols, facilitating easy integration with existing systems. Its compatibility with DeviceNet as an interface medium further enhances its interoperability within complex networks.

    This Allen-Bradley drive is not compliant with the European Union’s RoHS directive due to its use of hazardous substances. However, it is meticulously designed to offer unparalleled performance, reliability, and precision, making it a preferred choice for manufacturers seeking advanced motion control solutions.
