Brand:Allen-Bradley

Series:Kinetix 6000

Module Type:Axis Module

Input Voltage:324-528V rms, 3-phase

Nominal Voltage:360 / 480V

Peak Current (RMS):15.3 Amperes

Peak Output Current (0-pk):21.6 Amperes

Continuous Output Power:3.9 kW

Internal Shunt Peak Power:5.6 KW

Internal Shunt Continuous Power:50W

Efficiency:98%

Capacitance:150 µF

Capacitive Rating:200,000 A (rms) symmetrical

PWM Frequency:8 kHz

Velocity Loop Bandwidth Frequency:500 Hz

Current Loop Bandwidth Frequency:1300 Hz

Weight:22.3 lbs (10.1 kg)

Heat Dissipation:57-126 Watts

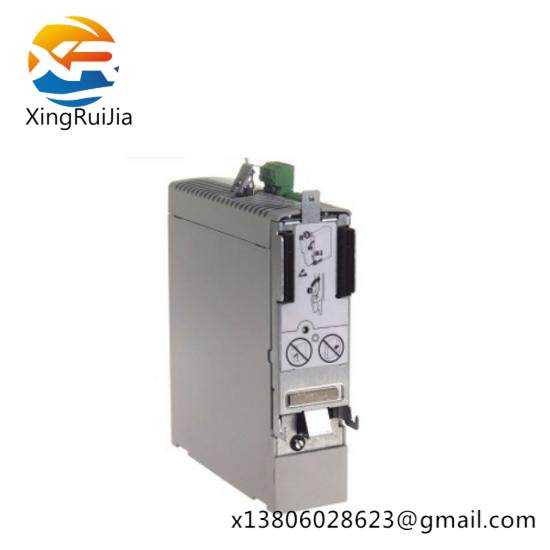

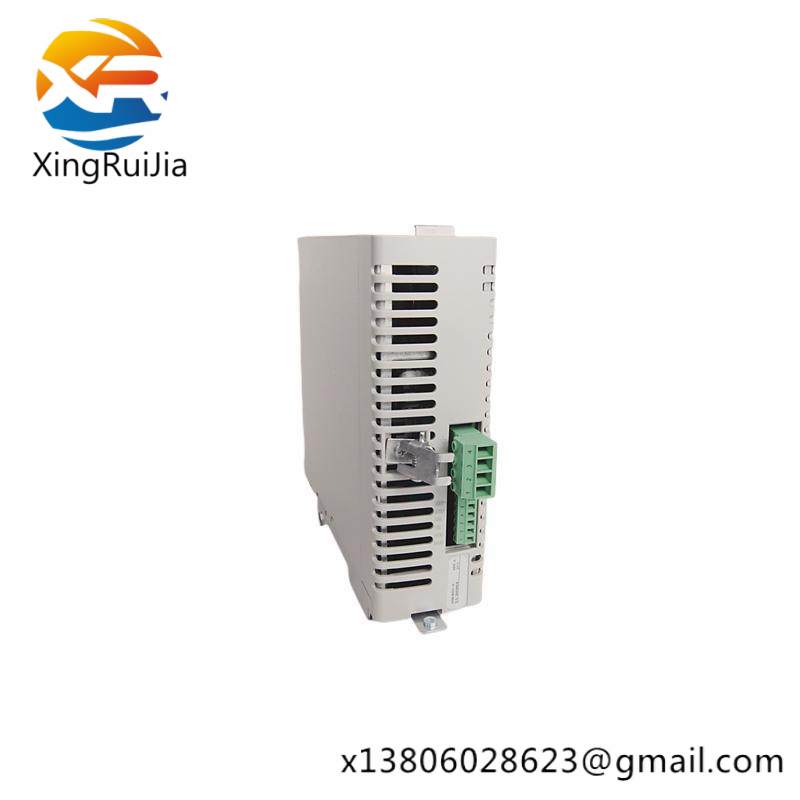

    The Allen-Bradley 2094-BM01-S is a cutting-edge AC drive module designed for the Kinetix 6000 Multi-Axis Drive System. Engineered for demanding industrial environments, this module ensures optimal performance and reliability. With a robust design, it offers an impressive continuous output power of 3.9 kW and a peak output current of 21.6 Amperes, making it perfect for applications requiring high torque and precision control. Its integrated Safe Torque Off (STO) feature enhances safety, safeguarding operators and equipment from unexpected movements. The module’s advanced diagnostics provide real-time insights into system performance, helping to minimize downtime and maximize productivity. The Allen-Bradley 2094-BM01-S is not just a drive module; it’s a comprehensive solution for industrial automation, designed to meet the stringent demands of modern manufacturing processes.
