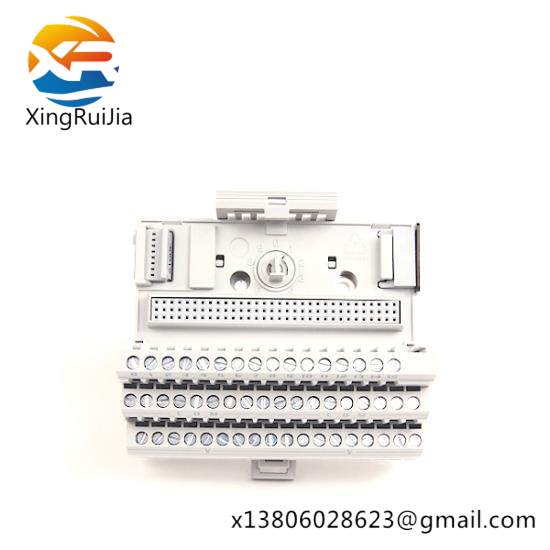

Product Type:Flex I/O Terminal Base

Model:1794-TB3K

Supplier:Allen Bradley

Input/Output Channels:16 I/O Channels

Supply Voltage Range:125V DC/AC, 50/60Hz, 10A

Isolation Voltage:125V

Continuous Voltage Rating:24V DC/AC, 120V DC/AC

Terminal Screw Torque:0.56-0.79 Nm

Operating Temperature:-40°C to 85°C

Enclosure Type:IP20

Dimensions:112mm x 125mm x 91mm

    The Allen Bradley 1794-TB3K FLEX I/O Terminal Base is meticulously engineered for optimal performance in industrial environments. This terminal base is a key component in building a robust control system, ensuring seamless integration with Allen-Bradley PLCs.

    Equipped with 16 versatile input/output channels, it offers flexibility in managing diverse signals, from simple digital inputs and outputs to complex analog signals. Its high isolation voltage ensures safety and reliability in harsh industrial conditions.

    With its wide supply voltage range and continuous voltage rating, the 1794-TB3K can handle various power sources, making it adaptable for different applications. The terminal screw torque specification ensures secure and reliable connections, reducing maintenance needs.

    Operating within a temperature range of -40°C to 85°C, this terminal base is built to withstand extreme environmental conditions, ensuring consistent performance throughout its lifecycle. The IP20 enclosure type provides basic protection against dust and splashing water, adding an extra layer of durability.

    Designed with user-friendliness in mind, the Allen Bradley 1794-TB3K FLEX I/O Terminal Base simplifies the installation and configuration process, allowing for quick integration into existing systems. Its compact dimensions make it suitable for space-constrained areas without compromising on functionality.
