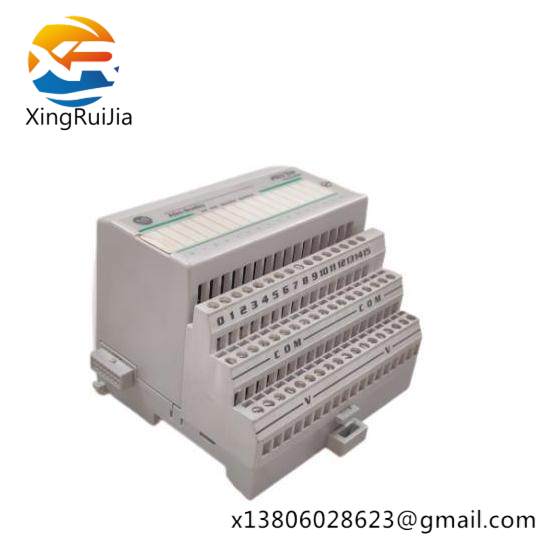

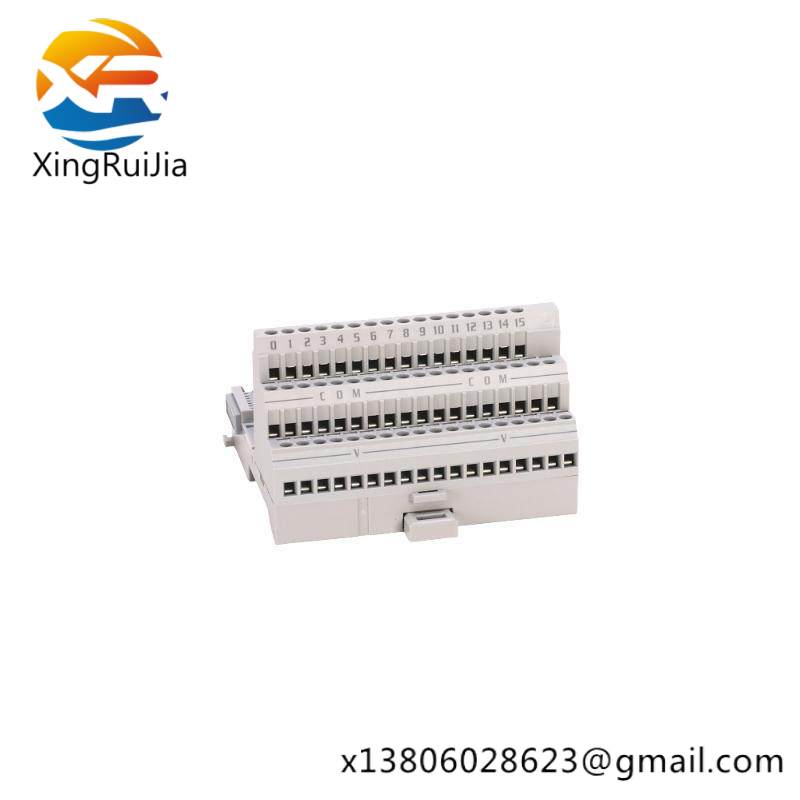

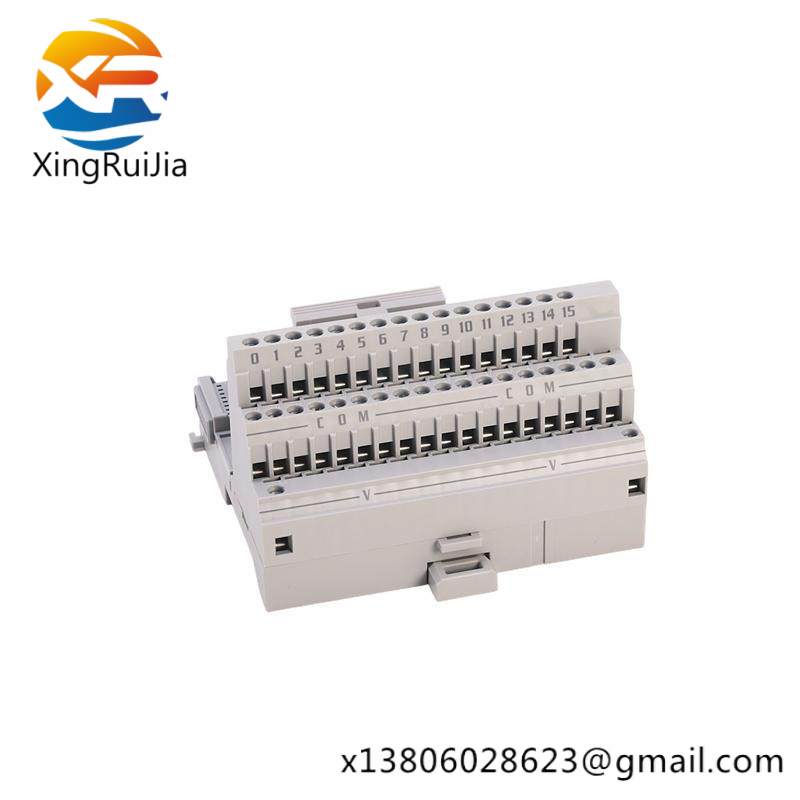

Product Type:Flex I/O Terminal Base Unit

Model Number:1794-TB3S

Manufacturer:Rockwell Automation

Terminal Screw Torque:0.56-0.79 Nm

Supply Voltage Range Max:125V DC/AC, 50/60Hz, 10A

Isolation Voltage:125V

Continuous Voltage Rating:24V DC/AC, 120V DC/AC

Operating Temperature Range:-40°C to +85°C

Humidity Range:5% to 95%, non-condensing

Dimensions:Width: 12.2mm, Height: 88.4mm, Depth: 121.4mm

Weight:Approximately 118g

    The Allen Bradley 1794-TB3 Terminal Base Unit is an essential component for any Flex I/O system. Designed for seamless integration into industrial control environments, this terminal base unit ensures robust connectivity and reliable performance. Its compact design allows for easy installation on standard DIN rails, saving space and simplifying wiring processes. With a terminal screw torque range of 0.56-0.79 Nm, the 1794-TB3 guarantees secure connections even under demanding conditions. Operating within a supply voltage range of up to 125V DC/AC at 50/60Hz and capable of handling up to 10A, this unit offers versatile power options. Additionally, the isolation voltage of 125V ensures electrical safety and stability. Ideal for use in a variety of industrial applications, the 1794-TB3 delivers consistent and dependable operation, making it a cornerstone of efficient automation systems.
