Product Type:Redundant Media ControlNet Adapter

Communication Port:One (1) ControlNet

Voltage:24 Volts DC

Input Voltage Range:19.2 to 31.2 Volts DC

Isolation Voltage:850 Volts DC

Mounting:DIN Rail; Panel Mounting

Model Number:1794-ACN15

Manufacturer:Allen Bradley

Load Capacity:8 I/O Module

Amperage Rating:400 MA

Communication Speed:125/250/500 KBPS

Length:3.7 IN

Width:3.6 IN

Height:3.4 IN

Enclosure Type:Open Type

Temperature Rating:-20 to 70 DEG C

Power Dissipation:7.6 W at 19.2 VDC

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G Operating

Vibration Resistance:5 G at 10 – 500 HZ

Standard/Approvals:UL listed

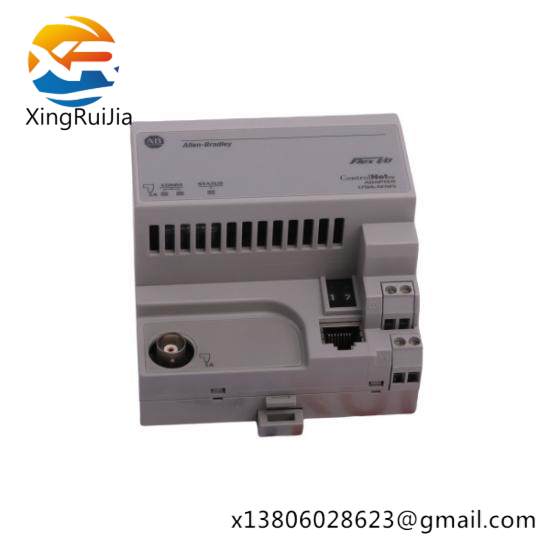

    Engineered for efficient data transfer in industrial environments, the Allen Bradley 1794-ACN15 Flex ControlNet Adapter ensures reliable communication between various components of your automation system. Its robust design withstands harsh conditions typically found in manufacturing floors.

    This adapter supports a single ControlNet communication port, facilitating direct connections with PLCs and other ControlNet devices. It operates on a stable 24V DC power supply, compatible with a wide voltage range, ensuring compatibility across different systems.

    With an isolation voltage rating of 850V DC, the adapter provides a high level of safety and protection against electrical surges. It can be easily mounted using DIN Rail or panel mounting methods, offering flexibility in installation options.

    Featuring an open-type enclosure, this adapter allows for easy access to internal components for maintenance and upgrades. It’s rated for operation within a temperature range of -20 to 70 degrees Celsius, making it suitable for use in various climate-controlled settings.

    The 1794-ACN15 Flex ControlNet Adapter is equipped with a power dissipation capability of 7.6W at 19.2VDC, ensuring efficient energy usage. It also meets UL standards, providing assurance of its safety and compliance with international regulations.

    Ideal for integration into complex industrial automation networks, this adapter enables faster data exchange, improving overall system performance and efficiency. Its compact size and rugged construction make it a valuable asset in any industrial setting.
