Processor:CompactLogix 5370 L2 Ethernet Processor Module

Memory:750KB

USB Ports:1

Ethernet/IP Ports:2

Digital Inputs:(16) 24V DC

Digital Outputs:(16) 24V DC

Analog Inputs:(4) Voltage/Current

Analog Outputs:(2) Voltage/Current

High-Speed Counters:4

I/O Expansion:Up to 4 1769 I/O Expansion Modules

Ethernet/IP Nodes:Up to 120

Motion Control:24V DC Power Supply with 1GB SD card, expandable to 2GB

Network Compatibility:Supports EtherNet/IP, Device Level Ring

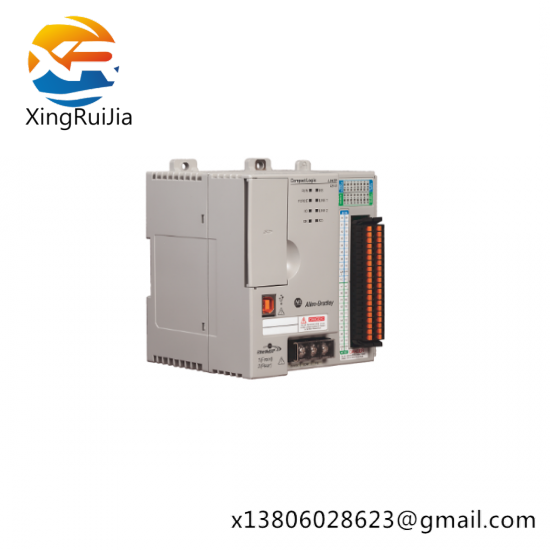

    Experience unparalleled performance with the Allen-Bradley 1769-L24ER-QBFC1B, a cutting-edge processor module designed for industrial automation. This module is equipped with advanced features that cater to the demanding needs of modern manufacturing environments.

    Featuring dual Ethernet ports with Device Level Ring capability, this module ensures reliable data transfer and enhanced system resilience against network disruptions. The integrated 1MB memory allows for extensive programming and storage, supporting complex applications without compromise.

    With its 16 24V DC digital inputs and 16 digital outputs, the 1769-L24ER-QBFC1B offers precise control over various industrial processes. The four universal analog inputs and two analog outputs provide flexibility for measuring and controlling voltage and current signals, enhancing system adaptability.

    The inclusion of four high-speed counters enables efficient tracking and monitoring of fast-changing events, critical for high-speed processing and precision control. This module also supports up to 16 Ethernet IP nodes, facilitating a seamless integration with other devices in the network.

    Equipped with a 24V DC power supply, the Allen-Bradley 1769-L24ER-QBFC1B ensures stable operation under varying conditions, backed by a secure SD card slot for easy expansion and enhanced data management capabilities. Designed for durability and reliability, this module is an indispensable asset for industrial automation projects.
