Memory Capacity:384 KB

Module Expansion:Up to 6 modules

Digital Inputs (DI):16 sink

Digital Outputs (DO):16 source

Network Communications:Class 1, 3 networks

TCP Connections:4

Ethernet Ports:2 (DLR)

Backplane Interface:POINT bus

Storage:1 GB SD card

Power Supply:24V DC

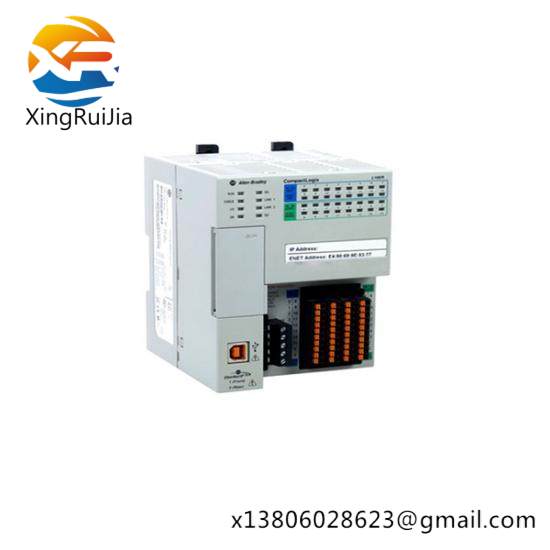

    The Allen-Bradley 1769-L16ER-BB1B CompactLogix Controller is a cutting-edge solution for modern industrial automation environments. Its compact yet powerful design makes it suitable for a wide range of applications, from small to large-scale manufacturing processes. The controller is equipped with a generous 384 KB memory, enabling efficient management of complex programs and algorithms.

    Featuring an expansion capacity of up to 6 modules, this controller allows for easy scalability and customization to meet specific application needs. With 16 digital inputs (sink) and 16 digital outputs (source), it provides ample connectivity for a variety of input and output devices, ensuring seamless integration within any control system.

    Equipped with a POINT bus backplane, the 1769-L16ER-BB1B supports high-speed data transfer and ensures reliable communication between modules. The inclusion of 2 Ethernet ports (DLR) facilitates robust network connectivity, supporting Class 1 and 3 network communications, and enabling 4 TCP connections for enhanced operational flexibility.

    Designed with user-friendliness in mind, this controller comes standard with a 1 GB SD card for storing configurations and data. Its compatibility with 1734 POINT I/O allows for the addition of up to 8 I/O expansion, making it a versatile choice for various industrial settings.

    Ideal for applications requiring efficient control and monitoring, the Allen-Bradley 1769-L16ER-BB1B CompactLogix Controller is a reliable choice for optimizing productivity, reducing downtime, and enhancing overall operational efficiency.
