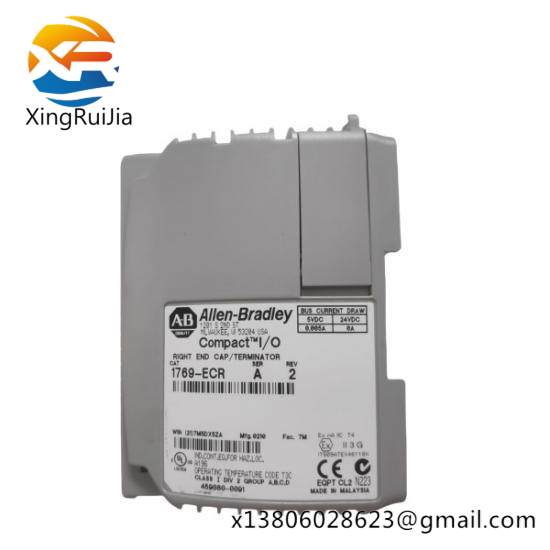

CompactLogix Module Type:Right End Cap (ECR)

Operating Altitude:Up to 2000 meters (6562 feet)

Maximum Bus Current Draw:5 mA at 5 volts DC

Backplane Current:1.4 Amps at 24 Volts

Power Consumption:33.6 Watts

Weight:525 grams (1.16 pounds)

    The Allen-Bradley 1769-ECRA is engineered to meet the stringent demands of industrial automation environments, offering unparalleled reliability and performance. Its compact design ensures minimal footprint without compromising on functionality.

    This Right End Cap (ECR) module is meticulously crafted using high-grade materials, ensuring durability and resistance to harsh industrial conditions. The use of 316 SST stainless steel provides excellent corrosion resistance, making it suitable for applications in diverse industries.

    Installation of the 1769-ECRA is straightforward and secure, thanks to its compatibility with a 2-inch pipe mounting bracket. This flexibility allows for easy integration into existing systems, enhancing installation convenience.

    The module’s advanced technology ensures seamless communication within the CompactLogix system, supporting a wide range of protocols and enabling efficient data exchange. Its capability to operate at altitudes up to 2000 meters makes it an ideal choice for installations in high-altitude environments.

    With a maximum bus current draw of 5 mA at 5 volts DC and a backplane current of 1.4 Amps at 24 Volts, the 1769-ECRA optimizes power consumption, contributing to energy-efficient operation. Its low power consumption is complemented by a high-performance rating, ensuring consistent and reliable performance throughout its operational life.
