Model Type:ControlLogix

Model Number:1756SC-IF8U

Manufacturer:Allen-Bradley

Quantity of Channels:8

Input Type:Analog

Input Range:-10 to +10 volts DC

Supply Voltage:DC 24V

Power Consumption:0.3 W

Communication Protocol:ControlNet

Operating Temperature:-40°C to +70°C

Environmental Compliance:CE, UL, CSA

Dimensions (WxHxD):4.9 x 5.7 x 1.5 inches

Weight:0.45 lbs

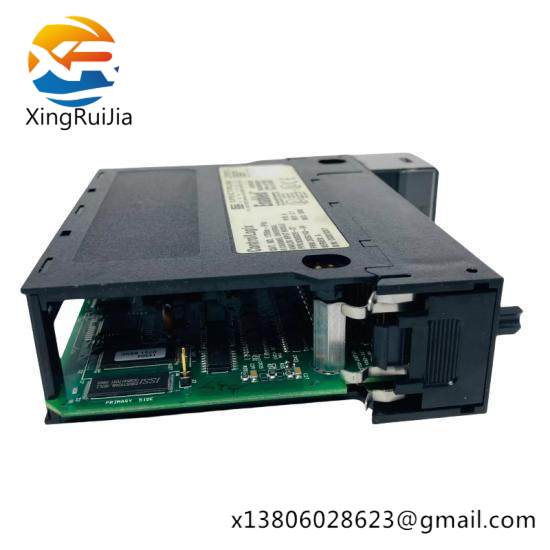

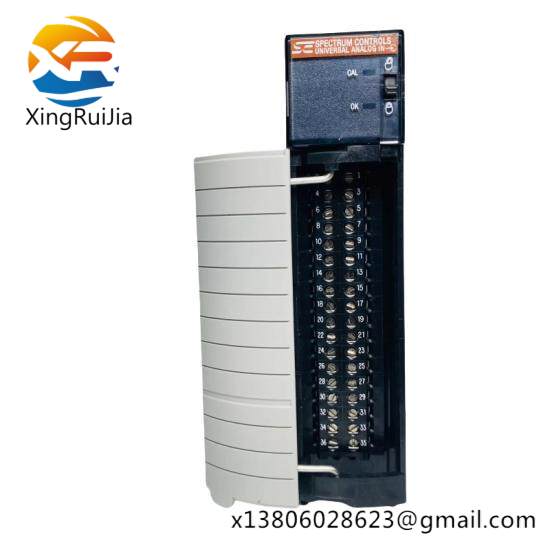

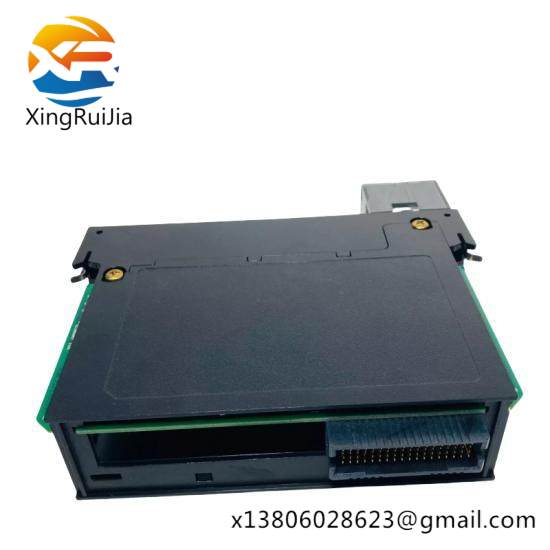

    The Allen-Bradley 1756SC-IF8U Analog Input Module is engineered for seamless integration into ControlLogix systems, ensuring reliable data acquisition in a wide range of industrial applications. Its compact design and robust construction make it ideal for challenging environments where precision and durability are paramount.

    Featuring an impressive 8-channel capacity, this module supports both single-ended and differential inputs, providing flexibility in connecting various types of sensors. The ability to handle a broad input range of -10 to +10 volts DC ensures compatibility with a multitude of sensor outputs, enhancing its versatility across diverse industries.

    With support for ControlNet communication protocol, the 1756SC-IF8U facilitates efficient data exchange within a networked control system, improving overall system performance and reliability. Its high accuracy and low power consumption make it an economical choice for long-term operation in industrial settings.

    Designed to withstand extreme environmental conditions, this module operates effectively within a temperature range from -40°C to +70°C, ensuring reliable performance regardless of the ambient conditions. The CE, UL, and CSA certifications guarantee compliance with international safety standards, providing peace of mind for users around the world.

    Installation and maintenance are straightforward thanks to its intuitive design and Allen-Bradley’s commitment to user-friendly solutions. Backed by industry-leading technical support and comprehensive documentation, the 1756SC-IF8U Analog Input Module is an indispensable tool for engineers and technicians looking to enhance their industrial automation capabilities.
