Model Type:ControlNet Bridge Module

Manufacturer(s):Allen-Bradley

Operating System:Windows

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface Type:Ethernet

USB Port:Not Included

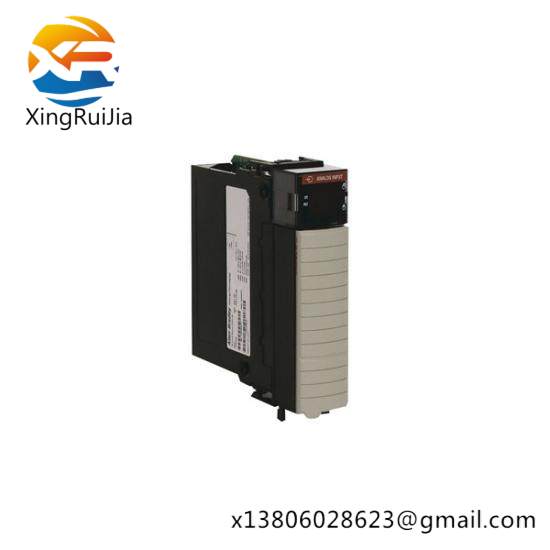

    The Allen-Bradley 1756-MVI Interface Module is engineered for industrial environments, facilitating efficient data exchange between IT systems and automation networks. Its compatibility ensures a smooth integration across different systems, enhancing operational efficiency.

    With an advanced design, this module supports 10/100 Mbps auto crossover detection, making it adaptable to various network configurations without manual adjustments. The inclusion of configuration and application ports allows for flexible setup and customization.

    Equipped with up to 5000 16-bit registers, the 1756-MVI module provides ample memory space for storing critical data, enabling precise control and monitoring functions within the industrial setting.

    Backed by the ProSoft Configuration Builder (PCB) software, users can easily configure the module and network settings through a user-friendly graphical interface, simplifying the process of integrating the module into existing systems.

    For enhanced security and reliability, the 1756-MVI module supports internal web-based data transfer, allowing for secure and efficient communication between the module and the processor. This feature ensures uninterrupted operation even under challenging network conditions.
