Model Type:ControlLogix

Manufacturer:Allen-Bradley

Number of Analog Inputs:6

Signal Type:Voltage

Input Range:-10V to +10V

Sampling Rate:20 kHz

Environmental Conditions:Operating temperature: 0°C to 60°C, Storage temperature: -40°C to 85°C

Enclosure Type:IP20

Power Consumption:Max. 5.1W

Communication Protocol:Ethernet/IP

Certification:UL, CE, CSA

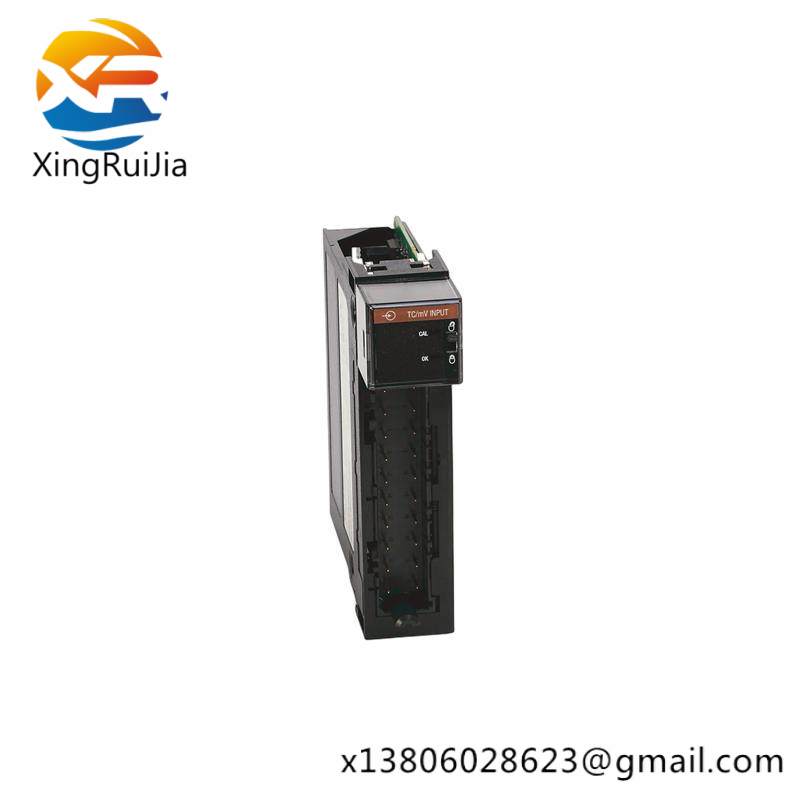

    The AB 1756-IT6I2 Analog Input Module is a critical component for any industrial automation system, designed to enhance precision and efficiency in real-time data acquisition. This module supports up to six analog inputs, each capable of measuring voltages within the range of -5 to +5 Volts DC, making it ideal for a variety of industrial applications including temperature, pressure, and flow measurements.

    Equipped with advanced communication capabilities, the module ensures seamless connectivity with other devices through its Ethernet/IP interface. It supports speeds up to 10/100 Mbps, ensuring reliable data transmission even under challenging environmental conditions.

    With an operating temperature range from -40°C to +70°C, this module is engineered to withstand extreme environments commonly found in industrial settings. Its robust design and adherence to international safety standards UL/cUL, CE, and RoHS make it a trusted choice for industrial automation projects worldwide.

    Crafted with precision and durability, the AB 1756-IT6I2 Analog Input Module boasts a compact size of 144mm x 76mm x 45mm, which facilitates easy installation without compromising functionality. It consumes minimal power, ensuring energy efficiency in operation.

    The module features an M12 Ethernet connector for secure and efficient data transfer, providing a reliable connection that is resistant to harsh industrial environments. Its open frame enclosure allows for versatile mounting options, enhancing flexibility in system integration.
