Module Input Type:Digital

Number of Outputs:16

Communication Cable:16-Point

Voltage Category:24V DC

Operating Voltage Range:20.4…26.4V DC

Current per Point:0.5 A at 60 °C, 1.0 A at 30 °C

Power:24 Volts DC

Bus Current Draw, Max:200 mA

Mounting:DIN rail or panel mount

Enclosure:Open type

RFI Suppression:Radiated: 10 V/M, 80% AM, 800 MHz – 2 GHz

Temperature Rating:32 – 140 DEG F

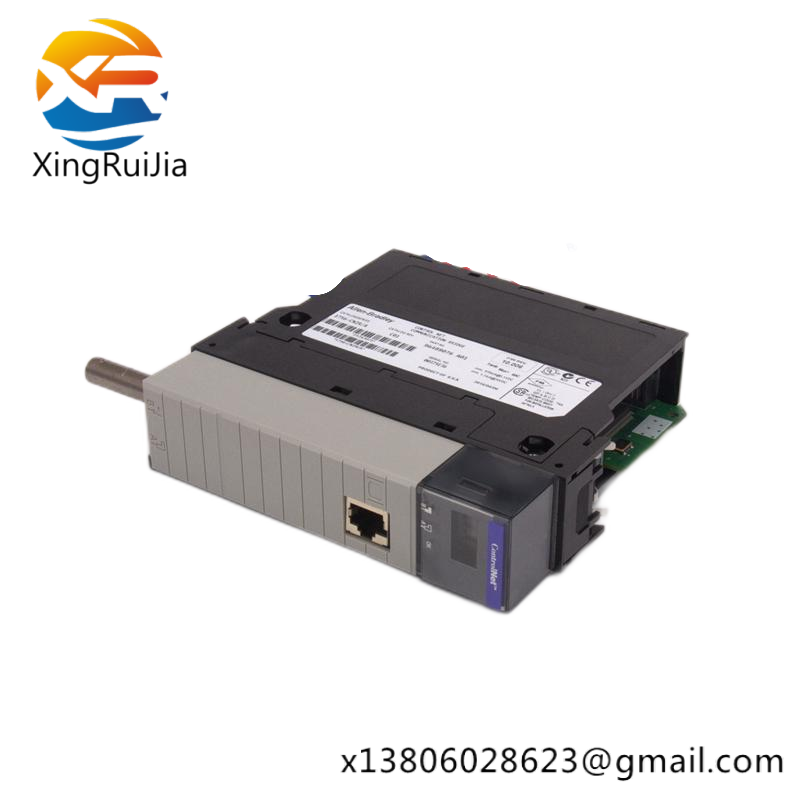

    Engineered for seamless integration into ControlLogix systems, the Allen-Bradley AB 1756-IB16I offers superior performance with its high-speed digital input capabilities, ensuring precise control and reliability in industrial applications.

    Featuring an open-type enclosure, this module is designed to provide a robust interface between your system and the external environment, safeguarding against electromagnetic interference (EMI) with advanced RFI suppression technology.

    With a wide operating voltage range of 20.4…26.4V DC, the module ensures compatibility across various power supplies, providing flexibility for diverse industrial settings. The ability to handle up to 16 points allows for efficient data collection and processing.

    Equipped with a 4-character alpha/numeric display, the module provides quick status checks and diagnostic information directly on the device, enhancing operational efficiency without the need for additional interfaces.

    Durable and reliable, the Allen-Bradley AB 1756-IB16I ControlLogix Isolated Input Module is an essential component for enhancing the performance of industrial automation systems, offering a balance of functionality, efficiency, and safety.
