Input Type:Digital

Number of Inputs:16 Points

Voltage Category:DC 24V

Operating Voltage Range:20.4…26.4V DC

Current per Point:0.5A @ 60°C, 1.0A @ 30°C

Power Supply:24V DC Bus

Max Current Draw:200mA

Mounting Option:DIN Rail or Panel Mount

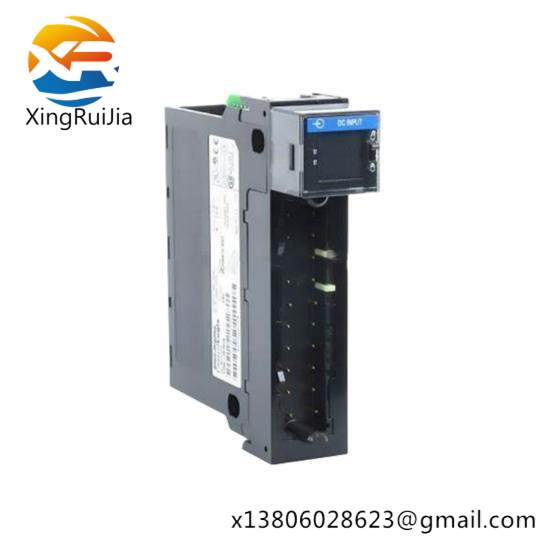

    The Allen-Bradley 1756-IB16 is a high-performance input module designed specifically for ControlLogix systems, ensuring efficient and reliable data acquisition from a wide array of industrial sensors and actuators.

    Featuring 16 discrete inputs, this module supports a broad voltage range of 10-31VDC, enabling it to interface with various industrial equipment and systems seamlessly.

    Equipped with sinking current capability, the 1756-IB16 is capable of handling high-speed signals without compromising on performance or reliability.

    Supporting industry-standard communication protocols such as ControlNet, DeviceNet, and EtherNet/IP, this module ensures compatibility with a wide range of industrial automation networks.

    Powered by a robust 24VDC supply, the 1756-IB16 maintains consistent operation within an extended temperature range of -20°C to +60°C (-4°F to +140°F), ensuring reliable performance under varying environmental conditions.
