Model Number:1756-HSC

Manufacturer:Allen-Bradley

Module Type:High Speed Counter

Operating Range:0 – 20 kHz

Resolution:250 ns

Counter Capacity:64 bit

Power Consumption:2.3 W

Communication Interface:ControlLogix EtherNet/IP

Enclosure:IP20

Environmental Rating:NEMA 12

Temperature Range:-40°C to +85°C

Connection Type:DIN Rail Mount

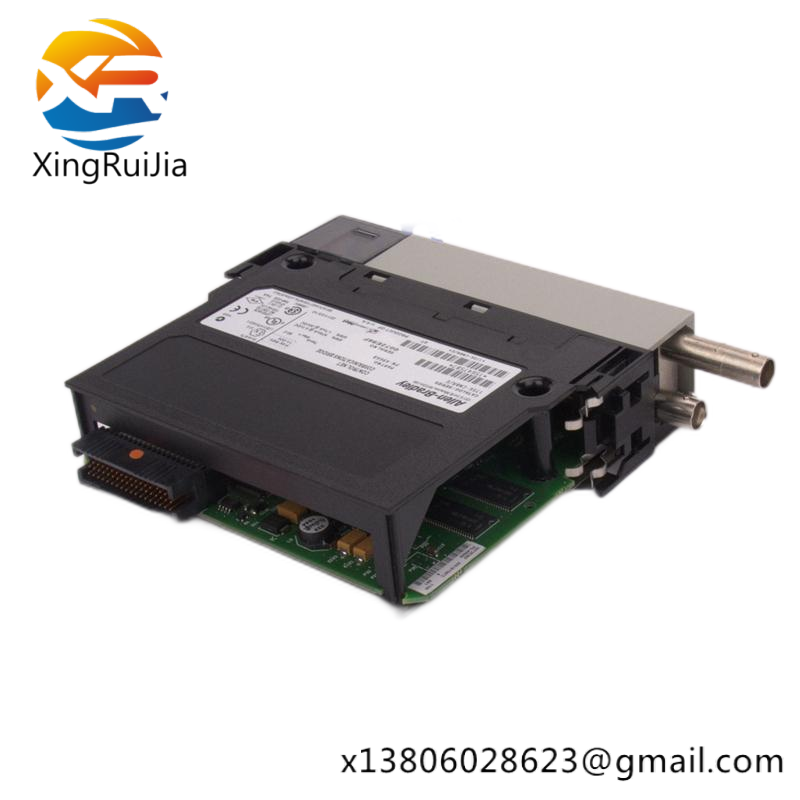

    The Allen-Bradley AB 1756-HSC ControlLogix High Speed Counter Module is specifically engineered for demanding industrial applications requiring precise and rapid counting capabilities. Its compact design and robust construction make it ideal for integration into existing ControlLogix systems, ensuring minimal downtime and maximum efficiency.

    With a sampling rate of up to 10 kHz and a counter resolution down to 1 microsecond, this module delivers unparalleled accuracy in high-speed counting tasks, essential for processes such as material handling, robotic applications, and process control.

    Equipped with 4 high-speed counter channels, the AB 1756-HSC allows for flexible configuration, supporting both Up/Down counting and modulo operations. This versatility makes it suitable for a wide range of industries, including manufacturing, automotive, and packaging.

    Featuring an EtherNet/IP communication interface, the module seamlessly integrates with other ControlLogix components and third-party devices, enhancing system connectivity and scalability. Its conformal coating ensures protection against harsh industrial environments, maintaining performance under extreme conditions.

    Designed for ease of installation and maintenance, the Allen-Bradley AB 1756-HSC ControlLogix High Speed Counter Module comes with comprehensive documentation and support resources. Its compatibility with Allen-Bradley’s PLC software further simplifies programming and configuration, making it accessible to both experienced engineers and technicians.
