Model Type:Bridge Module

Manufacturer(s):Allen-Bradley

Model Number:1756-EN2TXT

Communication Protocol:EtherNet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not Equipped

Amperage Rating:Drawn: 400 MA At 5.1 V

Mounting:Chassis

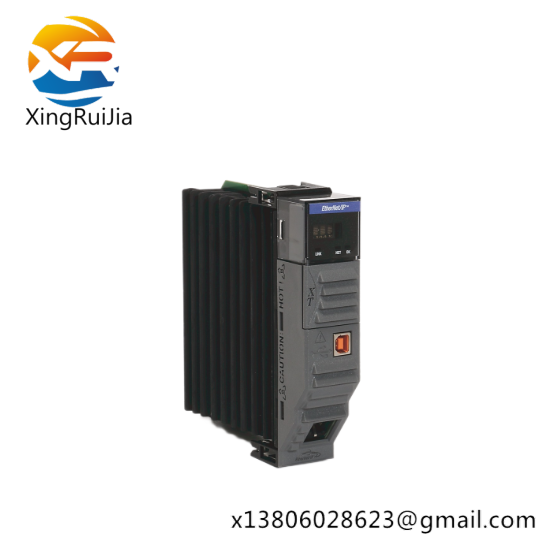

    The Allen-Bradley 1756-EN2TXT ControlLogix Bridge Module is designed for seamless integration into existing industrial automation networks, offering a robust solution for enhanced connectivity and scalability.

    With support for up to 128 TCP/IP connections and 256 CIP connections, this module facilitates efficient communication within complex industrial environments, ensuring reliable data transfer and control over various devices.

    Featuring a RJ45 copper interface, it ensures compatibility with standard Ethernet cables, simplifying installation and maintenance processes.

    The module supports a maximum of 64 TCP/IP connections and 128 Logix connections, making it ideal for applications requiring high-speed data exchange between ControlLogix processors and peripheral devices.

    Equipped with advanced features like socket services and SNMP support, the 1756-EN2TXT ensures optimal network management and monitoring, allowing for proactive troubleshooting and system optimization.
