Model Type:EtherNet/IP Bridge Module

High Capacity:2 Port, 8 Motion Axes

TCP/IP Connections:128

CIP Connections:256

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP

Enclosure Type:Open Type

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet, USB Port

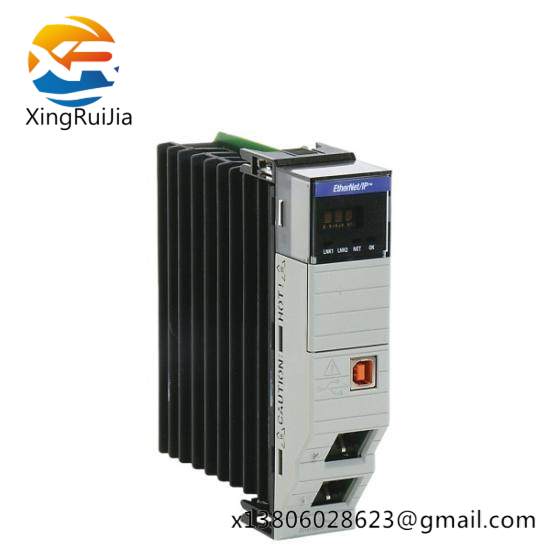

    The Allen-Bradley 1756-EN2TR is specifically designed for industries requiring robust and flexible communication networks. Its high-speed Ethernet/IP bridge ensures efficient data transmission between ControlLogix systems and external devices, enhancing productivity and reliability in manufacturing lines.

    With support for up to 8 motion axes, this module seamlessly integrates into complex automation scenarios, providing precise control over robotic movements and machinery operations. This feature is particularly advantageous in industries such as automotive, packaging, and food processing, where accuracy and speed are critical.

    Equipped with 128 TCP/IP connections and 256 CIP (Control Information Protocol) connections, the 1756-EN2TR supports a wide range of communication requirements, enabling seamless interaction with diverse devices and systems across the plant floor. This capability significantly reduces the complexity of system integration and enhances operational efficiency.

    The module’s robust construction withstands challenging environmental conditions, ensuring dependable performance in industrial settings. It is designed for operation within a temperature range from -20°C to +60°C, withstanding extreme climates and maintaining stability. Moreover, its shock and vibration resistance guarantees durability in dynamic environments.

    Featuring an open-type enclosure and RJ45 copper connections, the Allen-Bradley 1756-EN2TR provides easy installation and maintenance. It includes a USB port for convenient firmware updates and data transfers, supporting seamless integration with modern industrial control systems.
