Model Type:Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-EN2T/A

Communication Protocol:Ethernet/IP

Mounting:Chassis

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Communication Speed:10/100 Mbps

Power Supply:3 MA at 24 VDC

Enclosure:Open type

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:N/A

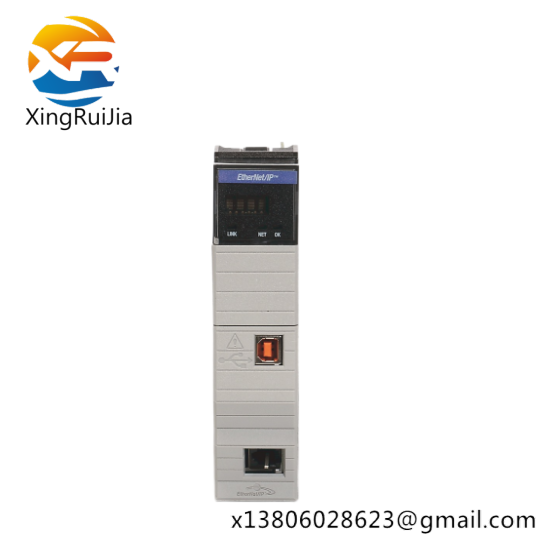

    The Allen Bradley 1756-EN2T/A ControlLogix Bridge Module is designed for robust industrial applications, featuring high-capacity Ethernet/IP communication capabilities that ensure smooth data exchange between ControlLogix PLCs and DeviceNet devices.

    With its open type enclosure, this module is engineered to withstand harsh industrial environments, ensuring reliable operation under varying temperature, humidity, and vibration conditions.

    Equipped with advanced RFI suppression technology, it provides exceptional electromagnetic compatibility, safeguarding against interference in noisy industrial settings, thus enhancing system stability and performance.

    This module supports continuous power dissipation, enabling it to operate efficiently without overheating, even under prolonged high-load conditions, making it suitable for demanding manufacturing environments.

    The Allen Bradley 1756-EN2T/A ControlLogix Bridge Module comes with a standard USB port for easy configuration and software updates, streamlining the setup and maintenance process for end-users.
