Model Type:DeviceNet Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-DNB/C

Communication Protocol:DeviceNet

Amperage Rating:Drawn: 400 MA at 5.1 V

Mounting:Chassis

Enclosure Type:Open Type

Rfi Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHZ

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not applicable

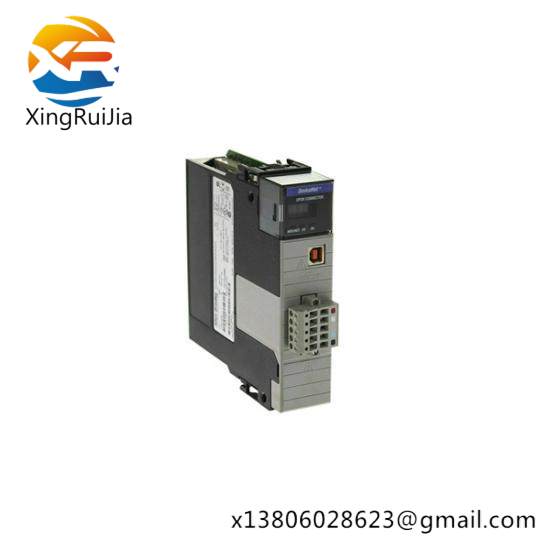

    The Allen Bradley 1756-DNB/C module is a pivotal component for enhancing the connectivity and operational efficiency of ControlLogix systems within industrial settings. Designed with precision, it ensures reliable communication with DeviceNet devices, supporting seamless data exchange and process control.

    With its robust 400 mA amperage rating at 5.1 V, this module can handle significant current demands without compromising system stability. Its chassis mounting option allows for secure integration into existing industrial infrastructures.

    Operating within a temperature range of 0 – 60 °C, the module is engineered to withstand varying environmental conditions commonly encountered in manufacturing floors. It maintains continuous isolation up to 30 V, ensuring data integrity and safety.

    The inclusion of advanced RF interference suppression measures guarantees reliable performance in environments prone to electromagnetic disturbances. The module’s open-type enclosure facilitates easy installation and maintenance, aligning with industry standards for industrial automation.

    Backed by the Allen Bradley brand’s reputation for quality and reliability, the 1756-DNB/C module is an indispensable tool for automating complex industrial processes, offering enhanced productivity and reduced downtime. It’s designed to optimize the efficiency of your operations, ensuring you stay ahead in the competitive landscape of modern manufacturing.
