Brand:Allen-Bradley

Model:1756-DHRIO

Operating Voltage:24 V DC

Communication Protocol:DeviceNet, DH-485

Data Transfer Rate:Up to 500 kbps

Current Consumption:Typically 50 mA

Interface Type:Digital Input/Output

Environmental Rating:NEMA 4X / IP65

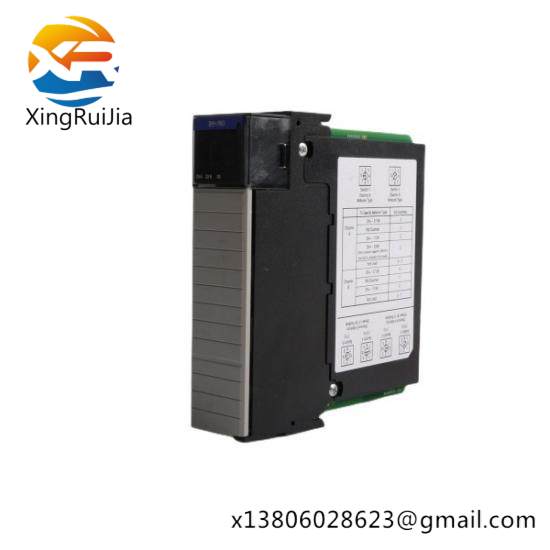

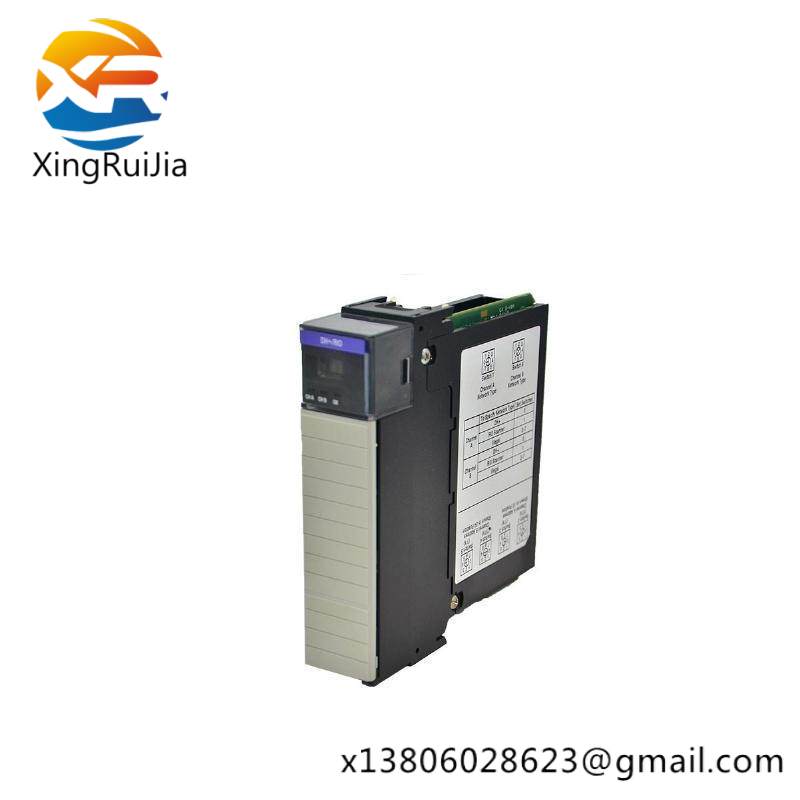

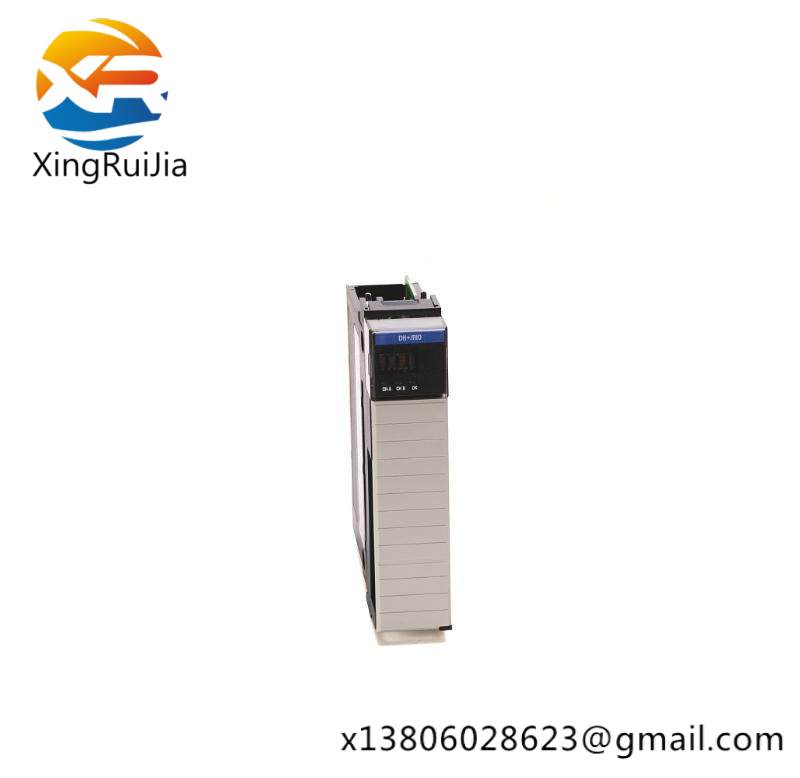

    The AB 1756-DHRIO is an advanced digital interface module designed to streamline communication between ControlLogix controllers and remote I/O systems. This module supports the RIO protocol, enabling high-speed data transfer rates up to 15 Mbps, making it ideal for real-time industrial automation applications.

    With its robust design, the 1756-DHRIO is capable of supporting up to 32 I/O modules, allowing for flexible system configurations and scalable solutions. The module operates within a wide temperature range from -40°C to +85°C, ensuring reliable performance even in harsh industrial environments.

    The AB 1756-DHRIO features an environmental rating of NEMA 4X / IP65, making it resistant to dust, water, and other contaminants. Its compact size of 17.5 cm x 11.4 cm x 10.2 cm ensures easy integration into existing systems without taking up excessive space.

    Installation and maintenance are made simple with user-friendly connectors and clear documentation. The module’s lightweight design at just 0.5 kg makes it easy to handle during installation and replacement processes.

    By choosing the AB 1756-DHRIO, you can enhance the efficiency and reliability of your industrial automation systems. Whether you’re upgrading an existing system or building a new one, this module provides the robust communication capabilities needed to meet your operational demands.
