Model Type:Communication Bridge Module

Model Number:1756-CNBR

Manufacturer:Allen Bradley

Series😀

Number of ControlNet Connections:2

Communication Rate:5 Mbps

Connector Types:[“ControlNet BNC connector”,”NAP RJ-45 8-pin with shield connector”]

Operating Temperature Range:-20°C to 60°C

Environmental Standards:IP20 Enclosure, Radiated EMI/RFI suppression up to 2 GHz

Power Consumption:Less than 5 W

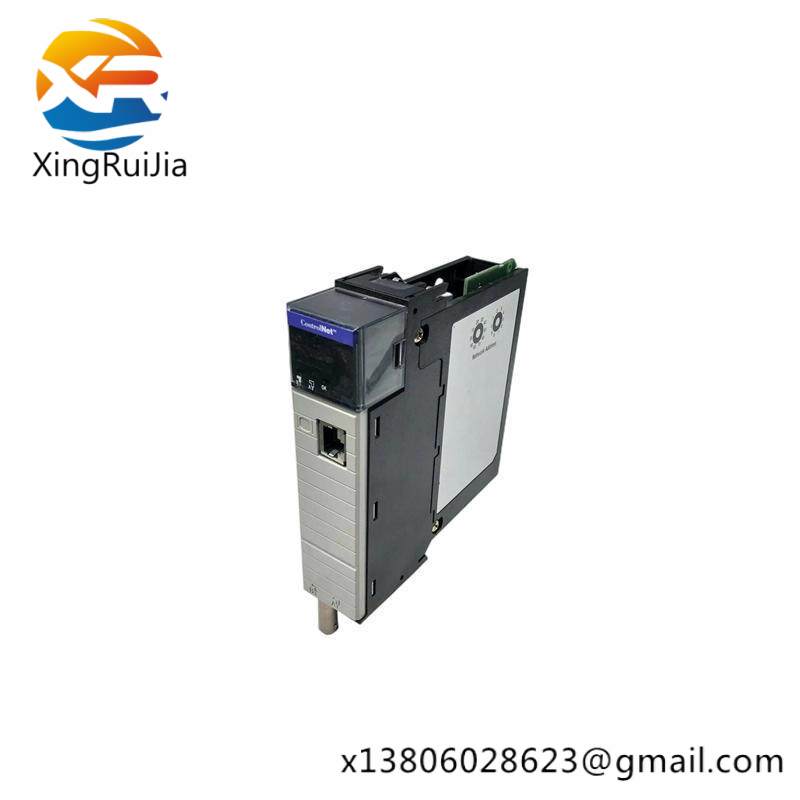

    The Allen Bradley 1756-CNBR Redundant Bridge Module is designed for high-reliability applications where two independent communication paths are required for critical data transfer. This module ensures that your ControlLogix systems can seamlessly communicate with both DeviceNet and ControlNet networks, enhancing system redundancy and reliability.

    With its dual redundant communication paths, the 1756-CNBR Module guarantees uninterrupted operation even under unexpected network failures, providing peace of mind for continuous production processes. It’s compatible with a wide range of Allen Bradley devices, making it a versatile choice for various industrial automation setups.

    Engineered with an open frame IP20 enclosure, this module offers a compact design suitable for most industrial environments. Its modular terminal block simplifies installation and maintenance, allowing for quick and efficient setup without the need for extensive wiring.

    Featuring low power consumption, the 1756-CNBR Module operates efficiently within the temperature range of -40°C to +70°C, ensuring robust performance in diverse environmental conditions. Its compliance with EN55022 Class B standards ensures effective protection against radio frequency interference and electromagnetic emissions, safeguarding against potential disruptions.

    Ideal for applications requiring enhanced fault tolerance, the Allen Bradley 1756-CNBR Redundant Bridge Module is an essential component for any industrial automation system aiming to maximize uptime and efficiency. Its integration capabilities, combined with advanced reliability features, make it a preferred choice among engineers and automation professionals worldwide.
