Model Type:Communication Bridge Module

Model Number:1756-CNBR/D

Manufacturer:Allen Bradley

Protocol:ControlNet

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, Conducted: 10 VRMS with 1 KHz sine-wave 80% AM from 150 KHZ – 80 MHz

Temperature Range:-40°C to +70°C

Operating Voltage:5.1 V

Amperage Rating:Drawn: 400 MA

Mounting:Chassis

Conduction Resistance:10 VRMS

Synchronization:Supports common industrial protocols

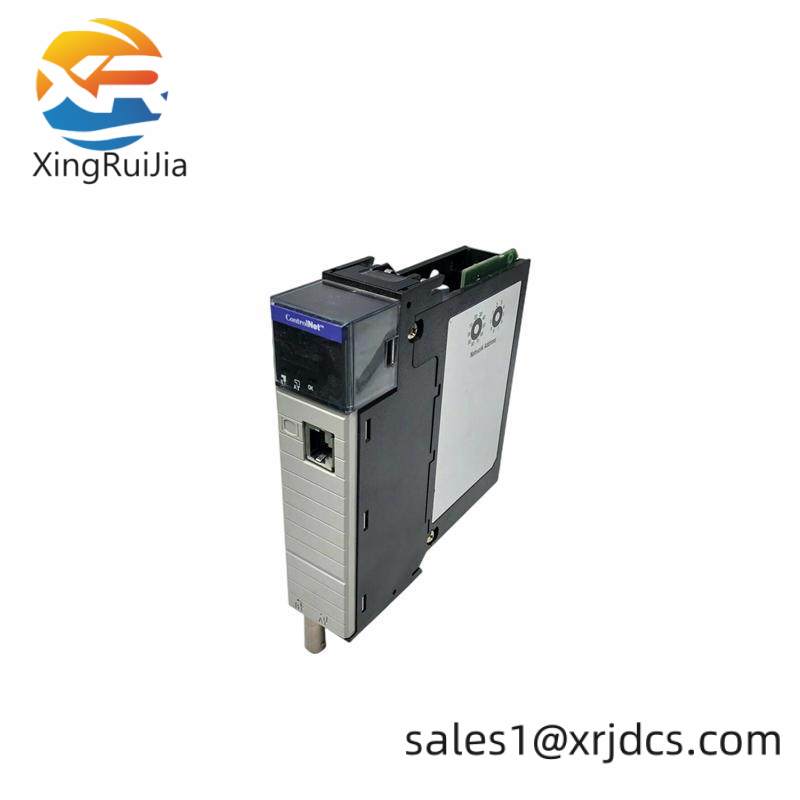

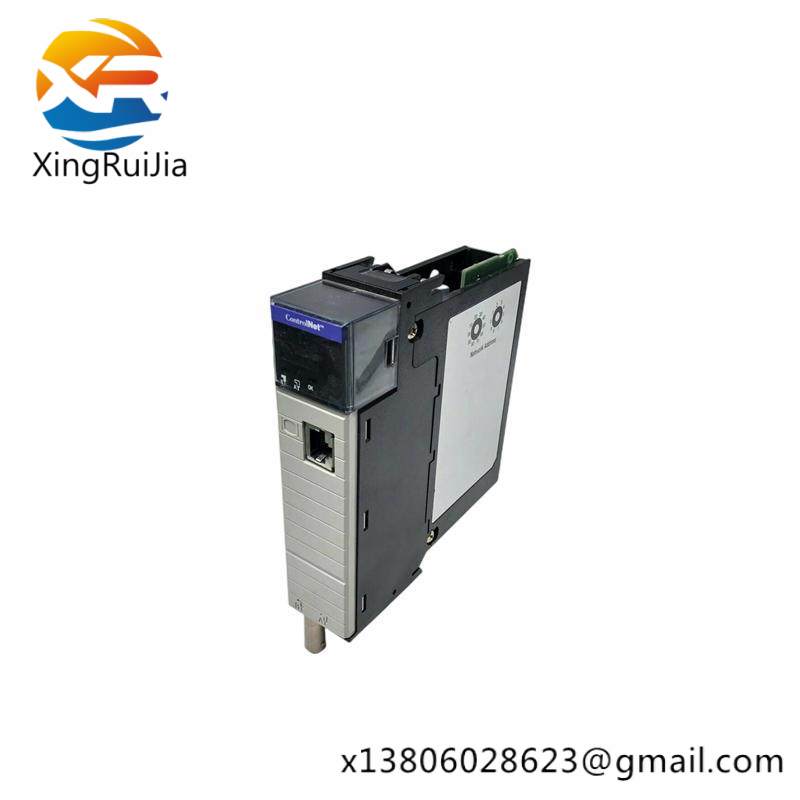

    The Allen Bradley 1756-CNBR/D CONTROLNET BRIDGE MODULE is specifically designed to enhance communication performance in industrial automation environments by serving as a robust interface between ControlLogix systems and ControlNet networks.

    With its open-type enclosure, this module ensures reliable operation in various industrial settings, while its chassis mounting option supports easy integration into existing control systems.

    Featuring advanced RFI suppression capabilities, it safeguards against interference, ensuring uninterrupted data flow and high system reliability.

    Operable within an extensive temperature range (-40°C to +85°C), this module is suitable for deployment in a wide array of industrial applications, making it a versatile choice for modern manufacturing facilities.

    The 1756-CNBR/D also adheres to stringent safety standards, providing peace of mind to users regarding compliance and operational integrity.
