Model Type:ControlLogix

Model Number:1756-A17

Manufacturer:Allen-Bradley

Input Channels:16

Single-Ended Input Channels:16

Differential Input Channels:8

High Speed Differential Input Channels:4

Input Types Supported:Current and Voltage

Sampling Rate:Up to 10 kHz

Signal Range:-10 V to +10 V

Power Consumption:Maximum 15 mA

Operating Temperature:-40°C to +85°C

Reliability Rating:MTBF > 100,000 hours

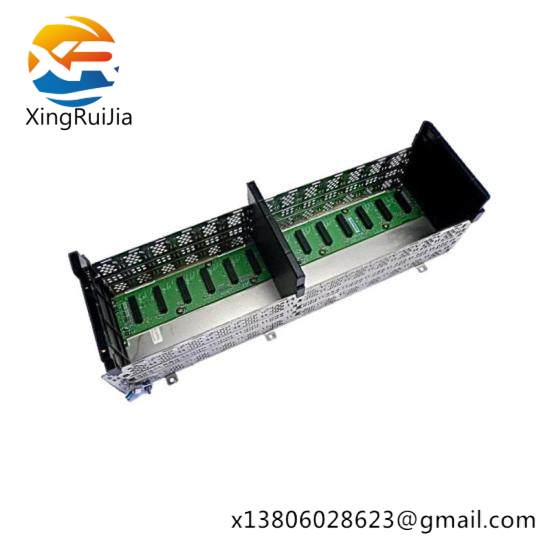

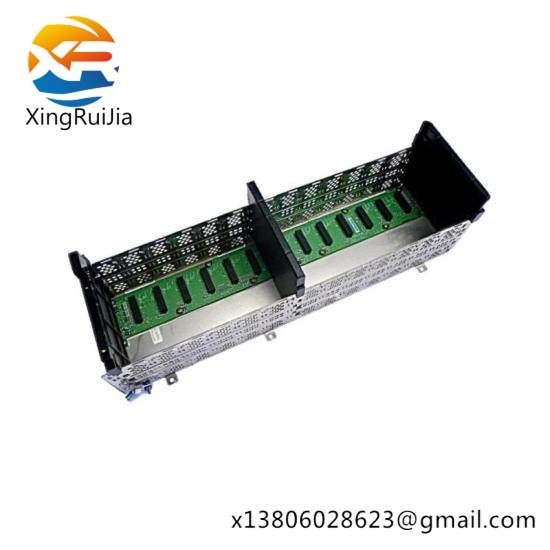

    The Allen-Bradley 1756-A17 is a critical piece of hardware for any industrial automation setup, offering precise analog signal acquisition with superior reliability. Its modular design ensures seamless integration with other ControlLogix components.

    With its diverse input options, the 1756-A17 is capable of handling various industrial signals, from low-voltage DC levels to current loops, making it suitable for a multitude of applications in manufacturing, process control, and beyond.

    Featuring an advanced sampling rate of up to 10 kHz, this module ensures that even rapid changes in signal are captured accurately, enhancing the responsiveness and efficiency of your system.

    Equipped with a robust communication interface through ControlNet, the 1756-A17 facilitates seamless data exchange between different devices within your automation network, improving overall system performance and reducing the need for complex wiring.

    Crafted with a focus on durability and longevity, the Allen-Bradley 1756-A17 operates reliably within a broad temperature range (-10°C to +55°C), ensuring stable operation in harsh industrial environments.

    Compact yet powerful, the dimensions of the 1756-A17 make it easy to integrate into existing systems without compromising space. Its IP20 enclosure rating provides protection against dust and light splashes, safeguarding the module in operational environments.
