Model Type:Analog Input

Manufacturer:Allen Bradley

Number of Channels:4

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Max.)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (VDC):-10 To 10 VDC – 1 LSB

Current Rating (Backplane):35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95%

Form Factor:Chassis

Mounting:Panel

Power Consumption:1.8 W

Power Dissipation:6.1 BTU/HR

Standard/Approvals:GOST_R, KCC, MARINE-ABS, MARINE-BVS, MARINE-DNV, MARINE-GL, MARINE-KRS, MARINE-LR

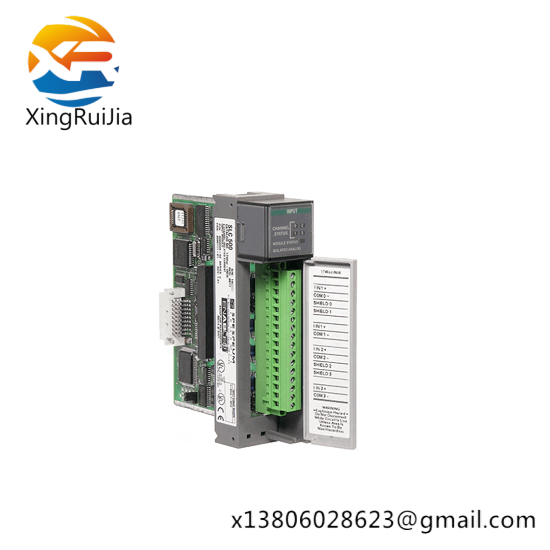

    The Allen-Bradley 1746sc-INI4vi Analog Input SLC 500 is an essential component for modern industrial automation systems, offering unparalleled reliability and accuracy in signal acquisition.

    Crafted with precision and robustness, this module ensures seamless integration into a wide range of control systems, supporting diverse industrial processes with ease.

    Engineered for efficiency, it minimizes downtime and maximizes productivity by providing quick and reliable signal processing capabilities.

    Designed for versatility, the Allen-Bradley 1746sc-INI4vi is compatible with both backplane and external power supplies, offering flexibility in installation and power sourcing options.

    With its operating temperature range of -20°C to +60°C, this module is built to withstand extreme conditions, making it ideal for harsh industrial environments.
