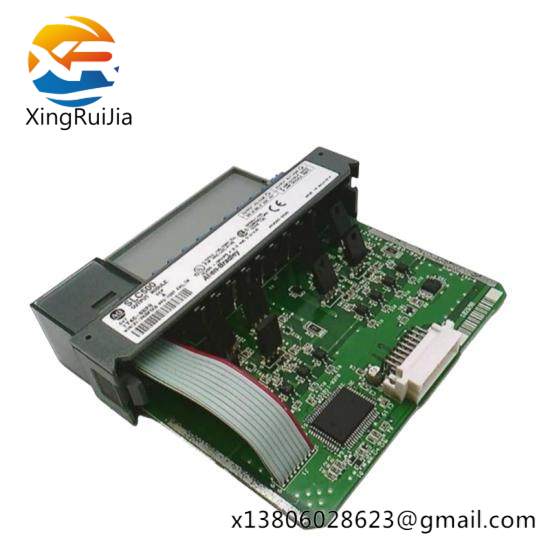

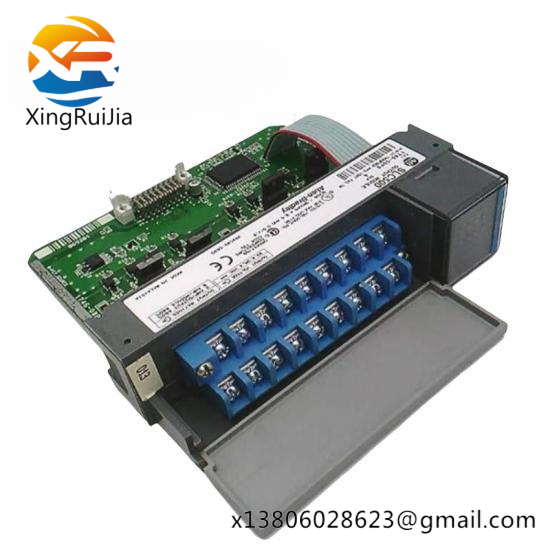

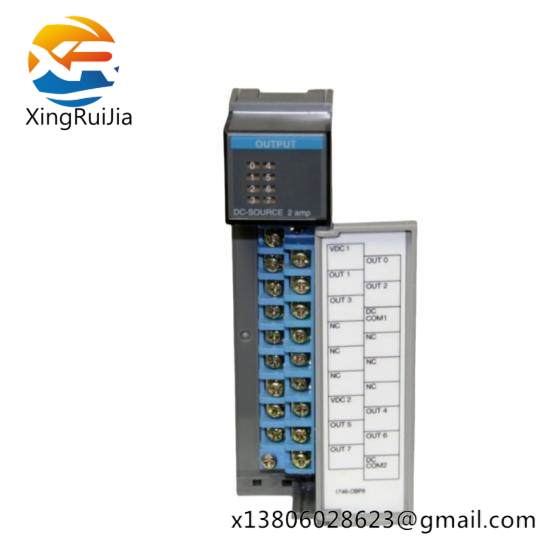

Type Designation:Digital Output Module

Model Number:1746-OBP8

Number of Channels:8

Operating Voltage:24VDC

On-State Voltage Drop:1.2V

Off-State Output Leakage:≤1mA

Load Current per Channel:1mA

Current Rating:Backplane: 280mA, Continuous per Channel: 250mA @ 60°C

Isolation:Communication Circuits: 500VDC, Backplane: 1500VAC

Processor:SLC 500 Series

Enclosure:Open Type

Mounting:Chassis Mount

Temperature Range:-40°C to 70°C

Environmental Conditions:5-95% Relative Humidity, Non-condensing

    Integrate with Allen-Bradley’s SLC 500 system for seamless automation control.

    Operate up to 8 digital outputs for various applications requiring precise control.

    Robust design withstands harsh industrial conditions within the temperature range of -40°C to 70°C.

    Supports RS-232/RS-485 communication interfaces for flexible connectivity options.

    Energy-efficient module consumes less than 1 watt, reducing operational costs.
