Model Type:Digital DC Output Module

Manufacturer:Allen-Bradley

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:≤ 1 MA

Load Current:≤ 1 MA

Current Rating per Output:0.25 A at 60°C

Current Rating per Module:4 A at 60°C

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Processor:SLC 500

Enclosure Type:Open Type

Mounting Method:Chassis

Temperature Range:0 – 60°C

Environmental Conditions:5 – 95% Relative Humidity

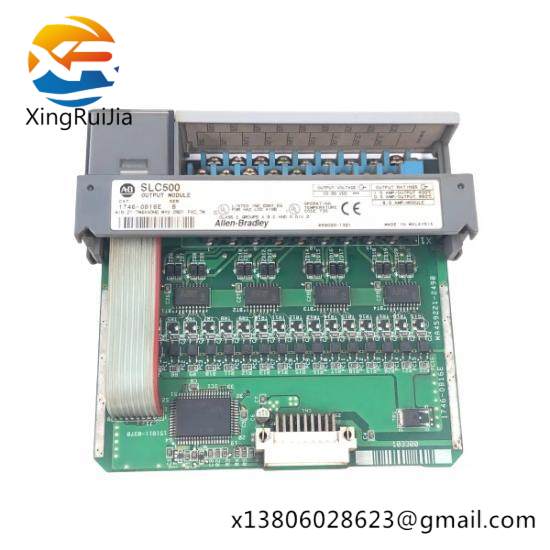

    The AB 1746-OB16E Protected Output Module is engineered for robust performance in demanding industrial settings. Its 16-channel design allows for flexible integration into complex control systems, ensuring precise control over high-voltage loads with minimized risk of electrical accidents.

    Each channel is equipped with state-of-the-art protection mechanisms, safeguarding against overloads, short circuits, and other hazards typically encountered in industrial operations. This ensures continuous operation and enhanced system reliability.

    Crafted from high-quality materials, this module offers superior durability and resistance to harsh environmental conditions, making it suitable for a wide range of industrial applications. Its compact size and lightweight construction facilitate easy installation and integration into existing control panels.

    The AB 1746-OB16E is compatible with leading automation systems, enabling seamless connectivity and data exchange. It supports various communication protocols, allowing for efficient integration with PLCs, HMI systems, and other industrial devices.

    With its adherence to international safety standards, including UL, CE, CSA, and TUV certifications, the AB 1746-OB16E Protected Output Module is a trusted choice for manufacturers seeking to enhance safety, efficiency, and productivity in their production lines.
