Model Type:SLC500

Model Number:1746-OB16

Manufacturer:Allen-Bradley

Digital DC Output Module:Yes

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:20.4-26.4VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Capacity:1 MA

Current Rating (Backplane):0.28 A

Continuous Current per Output:0.25 A at 60°C

Continuous Current per Module:4 A at 60°C

Isolation (Communication Circuits):500 VDC

Isolation (Backplane):1500 VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95% relative humidity

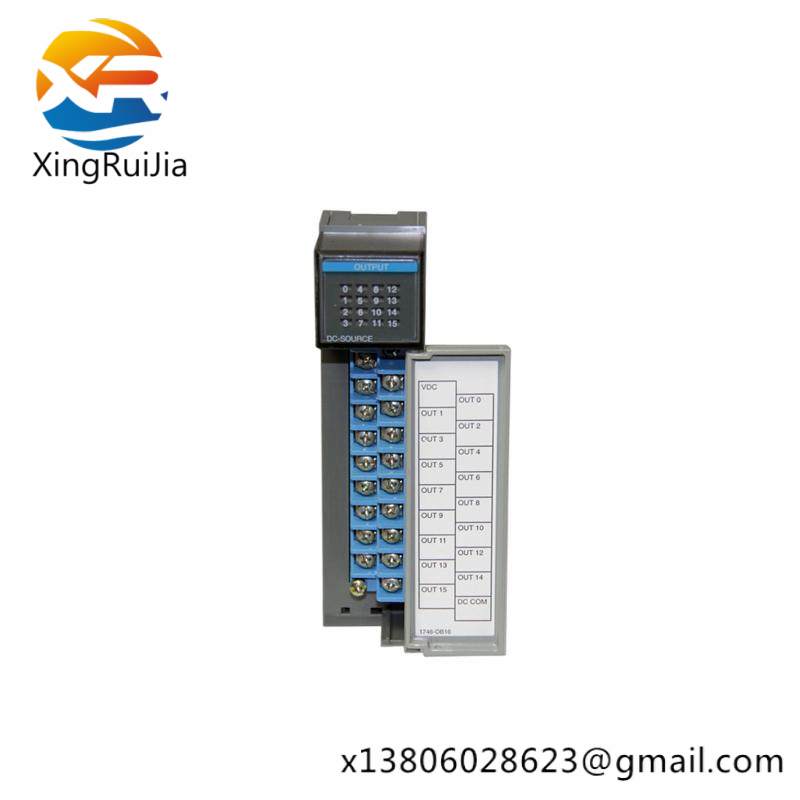

    Engineered for seamless integration into Allen-Bradley’s MicroLogix 1200 series, the AB 1746-OB16 Discrete Output Module offers precise control over industrial processes with its high-speed digital outputs.

    This module boasts a robust design capable of handling demanding industrial environments, ensuring reliable performance under varying conditions.

    Featuring 16 discrete outputs, it provides ample flexibility for configuring complex control systems, supporting a wide range of applications from simple logic control to more sophisticated automation tasks.

    With its open type enclosure, the AB 1746-OB16 allows for easy installation and maintenance, facilitating quick setup and minimizing downtime.

    Designed for optimal efficiency, this module optimizes power usage, reducing operational costs and enhancing overall system performance.
