Operating Voltage:24VDC

Number of Channels:8

Output Range:0-10V or 4-20mA

Accuracy:±1% of full scale

Response Time:≤ 1ms

Operating Temperature:-10°C to +55°C

Storage Temperature:-40°C to +70°C

Power Consumption:≤ 1W

Dimensions (WxHxD):127mm x 140mm x 148.4mm

Weight:0.7kg

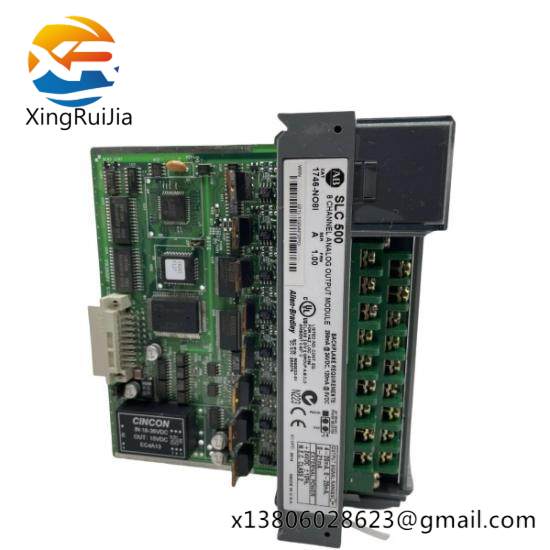

    Integrating the Allen Bradley 1746-NO81 Analog Output Module into your industrial automation system ensures precise control over analog outputs, offering enhanced efficiency and accuracy. This module supports a wide range of voltage and current outputs, making it versatile for various applications in manufacturing and process control.

    Featuring compatibility with ControlNet, DeviceNet, and EtherNet/IP protocols, the 1746-NO81 facilitates seamless integration with other components in your networked system. It is equipped with 8 independent channels, each capable of handling up to 0.5 A, ensuring robust performance even under demanding conditions.

    Designed with precision and reliability in mind, the module operates within an extended temperature range (-10°C to +60°C), making it suitable for a broad array of industrial environments. Its compact size and lightweight design (0.28 kg) allow for easy installation and integration without compromising on functionality.

    To optimize performance, the 1746-NO81 Analog Output Module is compatible with a variety of load resistances, including a maximum load resistance of 250 Ohms. This flexibility ensures that the module can handle different types of loads efficiently, enhancing its applicability across various industries.

    With Allen Bradley’s reputation for quality and durability, the 1746-NO81 Analog Output Module comes with comprehensive support and long-term reliability, backed by industry-leading technical assistance. Whether you are upgrading existing systems or planning new installations, this module is a reliable choice for achieving optimal control in your industrial operations.
