Number of Channels:4

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Max.)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

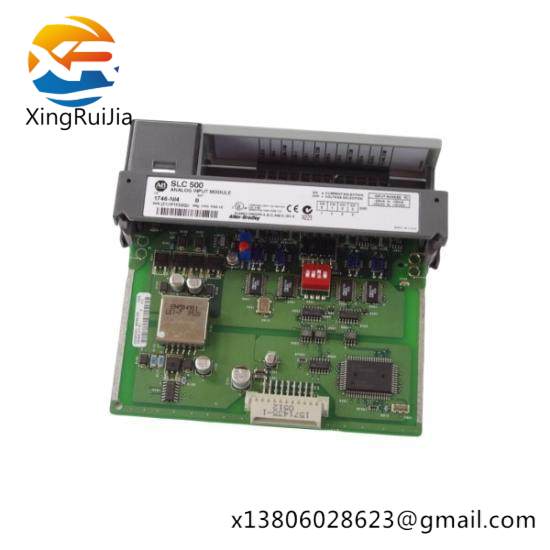

    Experience unmatched precision with the Allen Bradley 1746-NI4A Micrologix 1400 Analog Input Module, designed to enhance efficiency and reliability in industrial settings.

    Equipped with advanced technology, this module supports common mode voltage ranges and absolute input voltages, ensuring accurate signal acquisition under diverse conditions.

    Offering a robust input range and current rating, it is ideal for applications requiring high-resolution monitoring and control, delivering consistent performance in critical systems.

    Crafted with an open type enclosure and 500VDC backplane isolation, the module guarantees protection against electrical interference, safeguarding your system from potential hazards.

    With its compact design and comprehensive specifications, the Allen Bradley 1746-NI4A is the perfect choice for enhancing the capabilities of your existing automation infrastructure.
