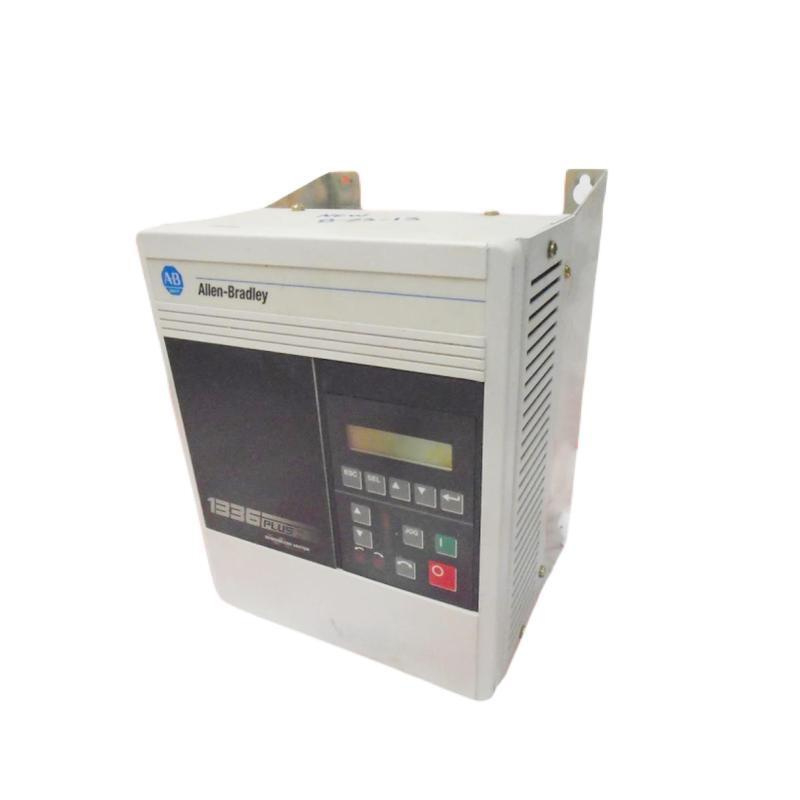

Allen-Bradley 1336-SP-142507
The Allen-Bradley 1336 series, represented by model 1336-SP-142507, is a standardized and modular variable frequency drive (VFD) designed for medium and low-power motor control. With advanced V/Hz vector control technology, it delivers precise speed and torque regulation, making it an ideal solution for a wide range of industrial applications. Below is a comprehensive overview of its specifications, features, structure, applications, and installation guidelines.
_____________________________________________________________________________
1. Overview
Core Positioning: The Allen-Bradley 1336 series is a standardized, modular variable frequency drive tailored for medium and low-power motors, covering a power range from several kilowatts to hundreds of kilowatts.
Technical Features: This series adopts V/Hz vector control technology, enabling high-precision speed and torque control capabilities.
Main Applications: Widely used in the drive control of industrial machinery such as pumps, fans, compressors, and conveyor belts.
_____________________________________________________________________________
2. Parameters
|
Parameter Type
|
Typical Range
|
Description
|
|---|---|---|
|
Rated Power
|
7.5 HP / 11 HP / 15 HP
|
The specific power depends on the model; for example, 1336F-BRF75 indicates 7.5 HP.
|
|
Input Voltage
|
380-480 VAC (Three-Phase)
|
230V or 600V series are also available.
|
|
Output Voltage
|
380-480 VAC (Three-Phase)
|
Equipped with soft start function.
|
|
Motor Rated Current
|
5-27 A (Varies by Power)
|
Models with higher current ratings are also available.
|
|
Control Mode
|
V/Hz (Vector Control)
|
Supports speed loop and torque loop control.
|
|
Enclosure
|
IP00 (Open Frame), IP54 (Protected)
|
Usually needs to be installed in a control cabinet.
|
_____________________________________________________________________________
3. Key Features
- Modular Design: Easy to install and maintain, with standardized module dimensions (e.g., NEMA Type 1).
- Compatibility: Supports communication with Allen-Bradley PLCs (such as MicroLogix, CompactLogix), facilitating system integration.
- Safety Performance: Equipped with built-in dynamic braking and overload protection functions.
- Programmability: Parameter adjustment can be performed through built-in Parameter Set or external Human Interface Module (HIM).
_____________________________________________________________________________
4. Structure & Composition
- Main Board: Responsible for frequency conversion and motor control logic.
- Power Board: Processes power electronic components, such as IGBT modules.
- Input Board: Provides power input terminals and communication ports.
- Human-Machine Interface (HMI): Such as the LCD display panel or keyboard of the 1336 Plus series, used for on-site debugging.
- Additional Modules: Such as Dynamic Braking Resistor, used for rapid motor stopping.
_____________________________________________________________________________
5. Applications
- Industrial Manufacturing: Automated production lines, robot base drives.
- Process Control: Pump and mixer control in chemical, petroleum, food and beverage industries.
- HVAC: Large fans and cooling water pumps.
- Water Treatment: Sewage lift pumps and water supply systems.
_____________________________________________________________________________
6. Installation & Maintenance
Installation: It is recommended to install in a well-ventilated cabinet. For IP00 open frame enclosures, ensure the surrounding environment is dust-free and free of corrosive gases.
Wiring: Strictly follow the wiring diagram on the Power Plate, paying special attention to the balance of the three-phase power supply.
Maintenance: Regularly check if the heat sink is dusty, clean the fan if necessary; check if the wiring on the motor side is loose.
For more information on product compatibility, technical support, or customization options, please contact our professional sales team.
————————————————————————————————-
