Model Type:SLC500

Manufacturer:Allen Bradley

Number of Channels:4 (Input)

Input Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Current Range:-30 To 30 MA (Maximum)

Overvoltage Protection:7.5 VAC RMS

Input Range:-20 To 20 MA

Output Voltage Range:-10 To 10 V – 1 LSB

Full Scale:10 VDC

Backplane Current Draw:55 MA

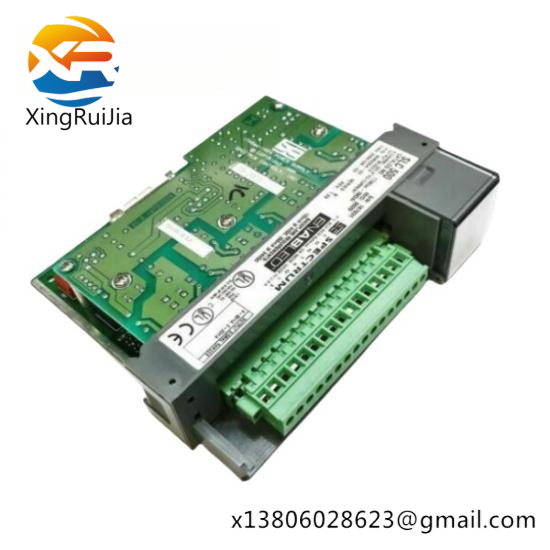

    Engineered for precision and reliability, the Allen-Bradley 1746SC-INO4I is a high-performance analog input module, ideal for industrial automation systems. It features a robust design capable of handling a wide range of input voltages and currents, ensuring accurate signal acquisition.

    This module supports up to four input channels, each capable of measuring common mode voltage ranges from -20 to 20 volts, providing versatility for various industrial applications. Its ability to withstand overvoltage protection ensures operational safety in harsh environments.

    With a backplane current draw of 35 milliamps at 5 volts and 85 milliamps at 24 volts, the 1746SC-INO4I efficiently consumes power without compromising performance. Its open-type enclosure offers easy integration into diverse industrial setups.

    The Allen-Bradley 1746SC-INO4I is compatible with a variety of communication protocols including EtherNet/IP, DH+, DH-485, and RS-232, enabling seamless integration with modern control networks. This enhances its utility in complex industrial automation systems.

    Designed with the latest technology, this module is built to last, offering durability and reliability that meet the demands of continuous operation in industrial settings. It is a critical component for enhancing the accuracy and efficiency of control systems in manufacturing, processing, and other industrial sectors.
