Operating Voltage:480V AC

Output Power:7.5 HP / 5.5 kW

Phase:3 Phase

Rated Current:12.0 A

Brake Type:Included

Communication Protocol:RS-485

Enclosure Type:Panel Mount – IP20, NEMA/UL Type Open

Network Type:ControlNet (Coax)

Control Type:Standard

Discrete Inputs:3 fixed for START/STOP/REV; 4 Fully Programmable

Discrete Outputs:1 – N.O/N.C. dry contact; 2 Digital / Optocoupler

Analog Input:2 0…10V or 4…20 mA (unipolar) 1 +/- 100V (bipolar)

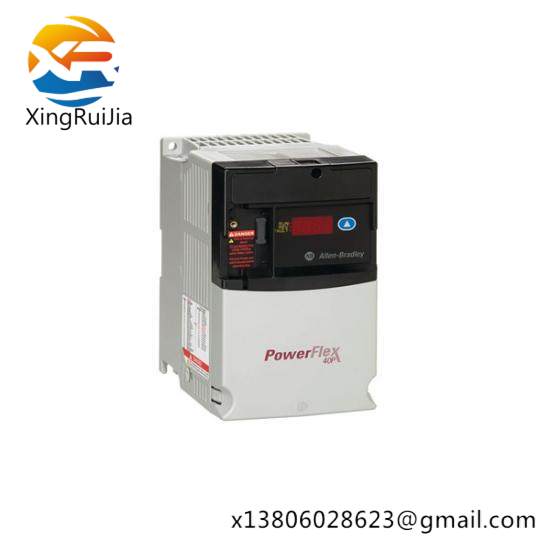

    The Allen-Bradley 22D-D012N104 AC Drive is engineered for unparalleled reliability and efficiency in demanding industrial environments. It boasts an integrated brake system, ensuring smooth transitions and precise control over machinery.

    Featuring a user-friendly full numeric LCD interface, this drive provides easy access to operational parameters and diagnostic information. The inclusion of ControlNet (Coax) ensures seamless integration with existing factory networks, enhancing productivity and reducing setup time.

    With a wide range of programmable inputs and outputs, the 22D-D012N104 AC Drive offers flexibility in controlling diverse industrial applications. Its panel mount design, rated IP20, makes it suitable for a variety of mounting configurations in open and protected environments.

    This product adheres to stringent safety standards and certifications, including CE compliance, guaranteeing safety and peace of mind for operators. Its robust construction and durable materials ensure longevity and minimize maintenance requirements, contributing to a cost-effective operation.

    Designed for both new installations and retrofits, the Allen-Bradley 22D-D012N104 AC Drive simplifies the upgrade process with its intuitive programming and compatibility with legacy systems. Its compatibility with A & B, C, D, & E frames, and support for various enclosure types makes it adaptable to a broad range of industrial setups.
