Output Power:10.0 kW / 7.5 HP

Input Type:Keypad

Filter Type:No

CE Compliance:Yes

Communication Protocol:RS-485

Enclosure Type:Panel Mount – IP20, NEMA/UL Type Open

Product Line:Powerflex 40

Discrete Inputs:3 fixed for START/STOP/REV; 4 Fully Programmble

Discrete Outputs:4 fully programmable

Analog Input:2 0…10V or 4…20 mA (unipolar) 1 +/- 100V (bipolar)

Discrete Output:1 – N.O/N.C. dry contact; 2 Digital / Optocoupler

Voltage:480AC Volts

Horsepower:7.5

Amperage:12.0 A

Phase:3 Phase

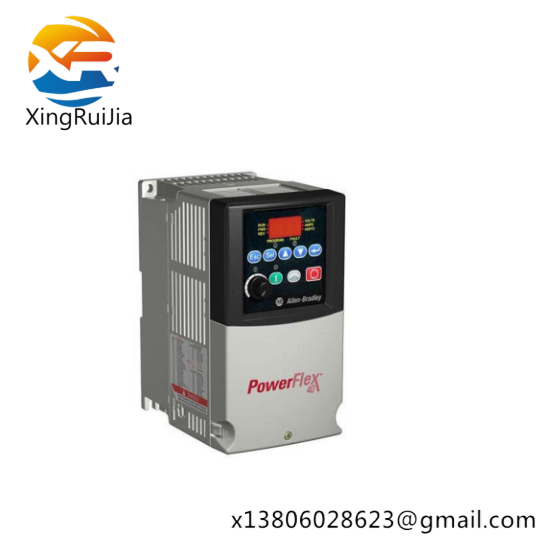

    The Allen-Bradley 22B-D2P3N104 AC Drive is designed with precision and reliability at its core, providing unmatched performance for industrial applications. Its full numeric LCD interface ensures intuitive operation and monitoring, enhancing efficiency and reducing downtime.

    Equipped with Ethernet/IP communication, this drive seamlessly integrates into modern industrial networks, allowing for remote diagnostics and control. The inclusion of C, D, and E frame ratings ensures compatibility across a wide range of motor sizes, making it versatile for various industrial setups.

    With its manual operation feature, users can fine-tune settings according to specific needs, ensuring optimal performance tailored to their application. The integrated resistor facilitates precise current control, further enhancing operational efficiency.

    Featuring a ControlNet (Coax) network type, this drive supports advanced control protocols, enabling complex control strategies and integration with other networked devices. The braking system included with the drive ensures smooth operation and safety during shutdowns.

    The Allen-Bradley 22B-D2P3N104 AC Drive boasts an array of discrete inputs and outputs, providing flexibility in control configurations. Whether managing start-stop operations, reversing, or implementing complex control logic, this drive delivers unparalleled control capabilities.
