Number of Inputs:8

Analog Input Range:-10V to +10V

Sampling Rate:10 samples per cycle

Communication Protocol:Modbus RTU

Power Consumption:1.5W (max)

Operating Temperature:-40°C to +70°C

Enclosure Type:IP20

Connector Type:Terminal Block

Dimensions:106mm x 90mm x 101mm

Weight:0.4kg

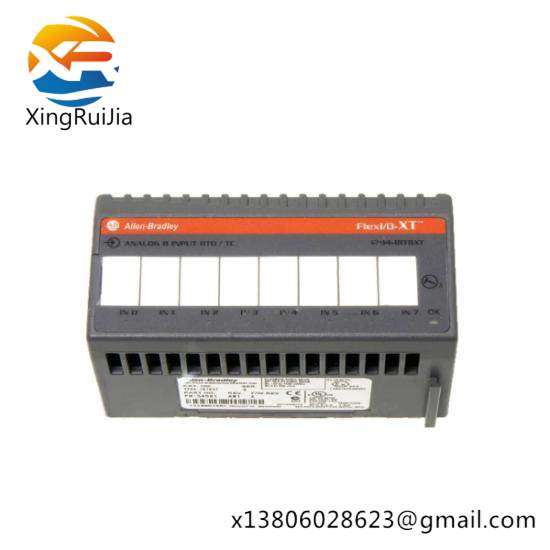

    The Allen-Bradley 1794-IRT8XT FLEX I/O XT Analog Input Module is designed to enhance your industrial automation system’s capabilities by providing reliable and accurate signal acquisition. This module supports both 0-20mA and 4-20mA input ranges, making it suitable for a wide array of applications from temperature control to process monitoring.

    Featuring an impressive accuracy of ±0.02% of full scale, the module ensures precise measurement, crucial for maintaining high-quality standards in manufacturing processes. Its quick response time of ≤ 5ms minimizes any delay in signal processing, improving overall system efficiency.

    Operated within a temperature range of 0°C to 50°C, this module can withstand harsh industrial environments, ensuring reliability in various conditions. The 1794-IRT8XT is designed for panel mounting, providing a compact and secure installation option.

    Compliant with DeviceNet communication protocol, the module facilitates seamless integration with other devices on your network, simplifying the setup and maintenance processes. With its robust construction and versatile features, the Allen-Bradley 1794-IRT8XT is an ideal choice for enhancing your industrial automation infrastructure.

    For optimal performance and compatibility, we recommend pairing this module with Allen-Bradley’s extensive line of control systems and accessories. Our technical support team is available to assist with any installation questions or troubleshooting needs.
