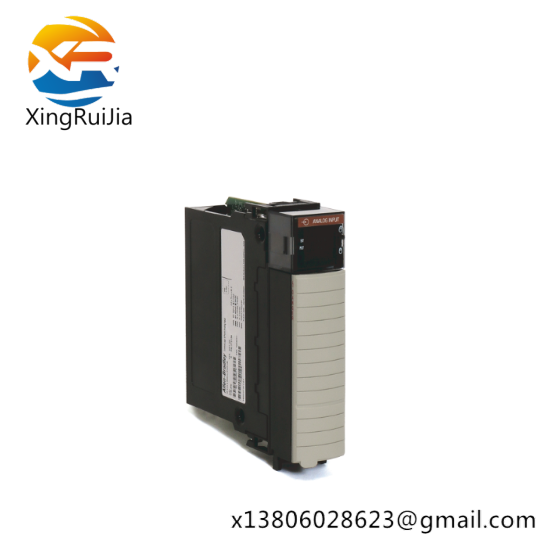

Model Type:ControlLogix

Model Number:1756-IF8I

Manufacturer:Allen-Bradley

Weight:1.00 lbs

I/O Channels:8

Input Type:Analog

Signal Range:Differential Voltage or Current

Data Formats:Multiple

Input Range:Flexible

Sampling Rate:Real Time

Alarm Detection:Under Range and Over Range

Communication Interface:ControlNet Bridge

Operating Temperature:0 – 60 DEG C

Power Dissipation:6.2 Watts

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

Vibration Resistance:2 G

Enclosure Type:Open Type

    Integrate seamlessly into ControlLogix systems for enhanced precision and reliability in industrial control scenarios.

    Offering eight channels for differential voltage or current inputs, this module is perfect for monitoring and controlling various industrial processes.

    Supports real-time data sampling through HART communication, enabling quick response times and accurate adjustments.

    With customizable data formats and adjustable input ranges, users can tailor the module to their specific application requirements.

    Incorporating a module filter for noise reduction and advanced alarm detection features, ensuring system stability and operational safety.

    This input module is designed for minimal power consumption, making it energy-efficient and suitable for a wide range of industrial environments.
