Manufacturer:ABB

Model:ZINT-7B1C

Type:Interface Board

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Relative Humidity:5% to 95% non-condensing

Input Voltage Range:DC 5V to 24V

Output Voltage:DC 5V

Communication Protocol:RS-232, RS-485

Dimensions (WxHxD):50mm x 50mm x 20mm

Weight:0.1kg

Connectors:2x 9-pin D-sub connectors

Power Consumption:Max. 1.5W

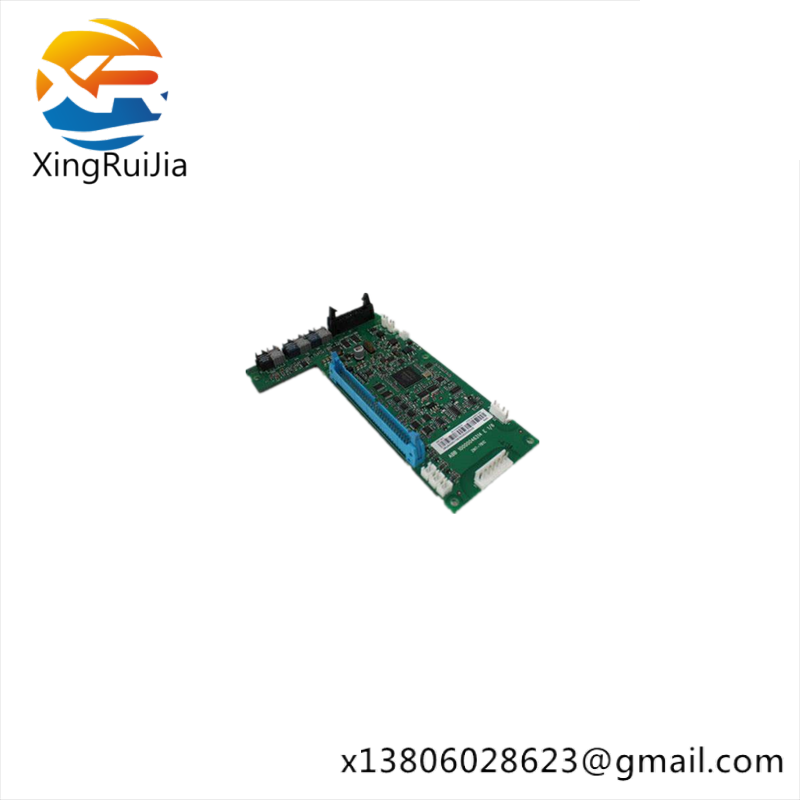

    The ABB ZINT-7B1C modular control interface board is meticulously engineered to enhance the operational capabilities of your industrial automation systems. Its compact design, coupled with robust connectivity options, ensures smooth integration and efficient performance across various applications.

    Featuring 16 inputs and 8 relay outputs, this board supports a wide range of input signals and provides reliable control over actuators and devices. The MODBUS RTU communication protocol ensures seamless data exchange with other industrial components.

    Crafted with precision, the ABB ZINT-7B1C boasts an operating voltage of 12V DC, ensuring stable operation under varying conditions. It is equipped with a low current input capability of 10mA, making it suitable for sensitive signal processing.

    Designed with user convenience in mind, the board offers intuitive setup and configuration processes, allowing for quick deployment without extensive technical knowledge. Its compact size (85mm x 85mm x 30mm) and lightweight (0.1kg) make it easy to install and integrate into existing systems.

    Moreover, the ABB ZINT-7B1C undergoes rigorous testing to guarantee high reliability and durability. It withstands harsh industrial environments, ensuring consistent performance throughout its service life.
