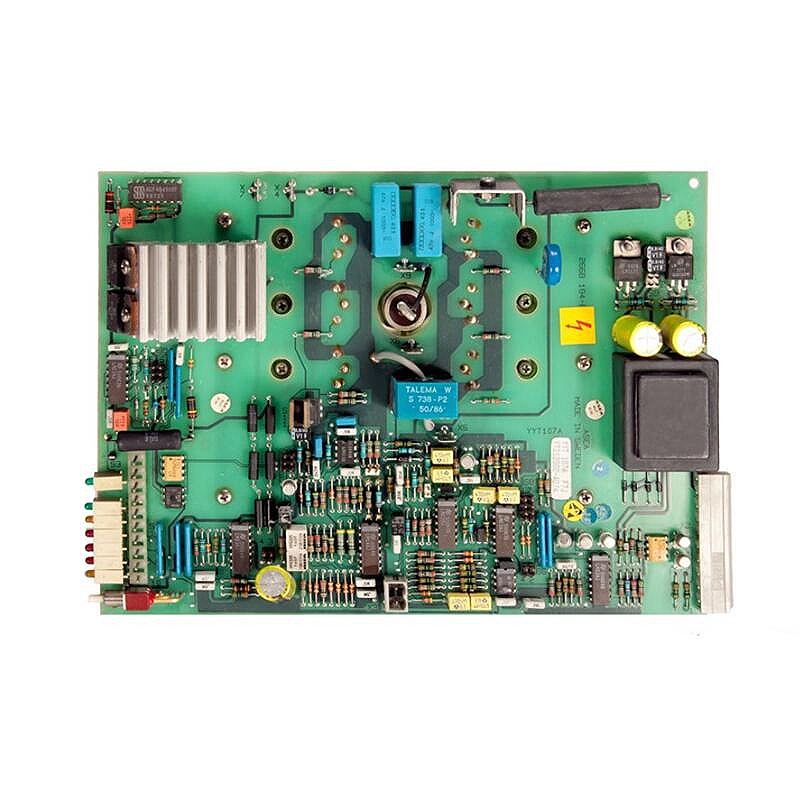

ABB YYT107A

I. Overview

II. Parameters

• Input voltage: 100-240V AC (for power conversion modules)
• Output voltage: 24V DC (for DC power modules)
• Output current: 7A (for DC power modules)
• Power: 168W (for DC power modules)
• Efficiency: >85% (for DC power modules)
• Operating temperature range: -10°C to +60°C (for modules)
• Dimensions: 120mm x 80mm x 40mm (for monitoring and controllers)
• Weight: 300g (for monitoring and controllers)

III. Product Features

• High reliability: Suitable for industrial environments with high reliability and stability.
• High efficiency: High rectification efficiency to reduce energy loss.
• High-temperature resistance: Capable of operating in high-temperature environments.
• Miniaturization: Compact size for easy installation.
• Versatility: Supports multiple industrial protocols such as Modbus and PROFIBUS.
• Easy installation: DIN rail mounting for convenient deployment.
• Diagnostic capability: Provides operational status feedback and potential problem prompts.
• Safety: Equipped with multiple safety functions such as overload protection, short-circuit protection, and overvoltage protection.

IV. Structure and Composition

• Input terminal: Used to receive AC power input.
• Rectifier module: Converts alternating current to direct current.
• Filter circuit: Smoothens the output voltage and reduces ripple.
• Protection circuit: Includes overvoltage, overcurrent, and short-circuit protection.
• Output terminal: Provides stable DC power output.
• Control panel: Equipped with user-friendly buttons and an LCD display for setting and monitoring required valve positions.
• Communication interface: Supports industrial protocols such as Modbus or PROFIBUS to ensure compatibility with different control systems.

V. Application Fields

• Industrial automation: Used in various industrial automation equipment to provide DC power.
• Power systems: Used in power electronic devices such as frequency converters and inverters.
• Mechanical equipment: Used in industrial robot systems, such as automated production lines for welding, painting, and handling.
• Building automation: Used in the control of building lighting, heating, ventilation, and water pump systems.
• Manufacturing industry: Used in the monitoring and control of parameters such as temperature, pressure, and flow during the manufacturing process.
• Energy industry: Used in power conversion and signal processing in fields such as power systems and mechanical equipment.

VI. Installation and Maintenance

• Ensure the installation environment meets the product’s operating temperature and humidity requirements.
• Fix the device using DIN rails or other suitable installation methods.
• Connect the power and signal lines, ensuring correct wiring.
• Adjust parameters as needed, such as accuracy level and output signal type.

• Regularly check that the device connections are secure to avoid loosening.
• Regularly clean the device surface to prevent dust accumulation.
• Perform regular calibration to ensure the accuracy of measurement and control.
• Regularly check that protection functions are working properly, such as overvoltage and overcurrent protection.

• If the device malfunctions, first check whether the power and signal lines are connected correctly.
• Check if protection functions are triggered, such as overload or short circuit.
