Operating Voltage:380V AC

Frequency Range:50/60 Hz

Output Power:296000 W

Efficiency Rating:98%

Input/Output Ratio:1:1

Insulation Class:F

Dimensions (WxHxD):250x100x200 mm

Weight:15 kg

Protection Rating:IP20

Cooling Method:Natural convection cooling

Control Interface:Modbus TCP/IP

Certifications:CE, UL, CSA

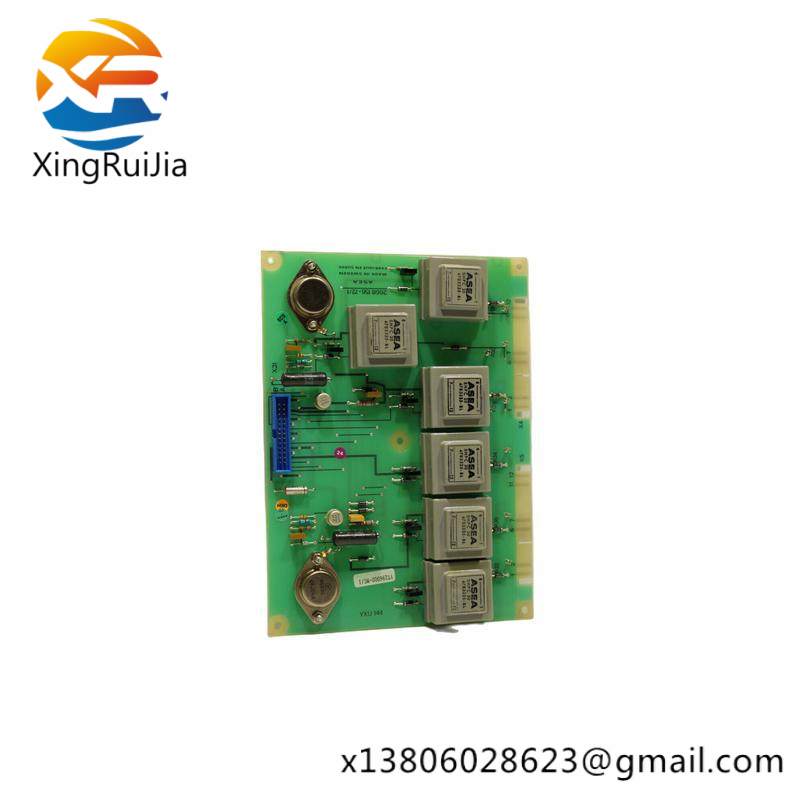

    The ABB YXU144 YT296000-MC YXU 144 Pulse Transformer Unit is a critical component in industrial control systems, ensuring seamless operation and high precision in pulse generation tasks.

    Crafted from high-quality stainless steel, this transformer unit boasts durability and resistance to harsh environments, making it suitable for various industrial applications.

    With an operating frequency of 20 kHz, it efficiently transforms electrical signals for optimal performance in control circuits, enabling accurate timing and synchronization in automation processes.

    Featuring a power rating of 144 VA and a maximum output current of 2A, the YXU144 ensures reliable power delivery, supporting a wide range of equipment and systems.

    Operated within a temperature range of -20°C to +55°C, this transformer unit maintains its performance across different environmental conditions, enhancing its versatility and reliability in diverse industrial settings.
