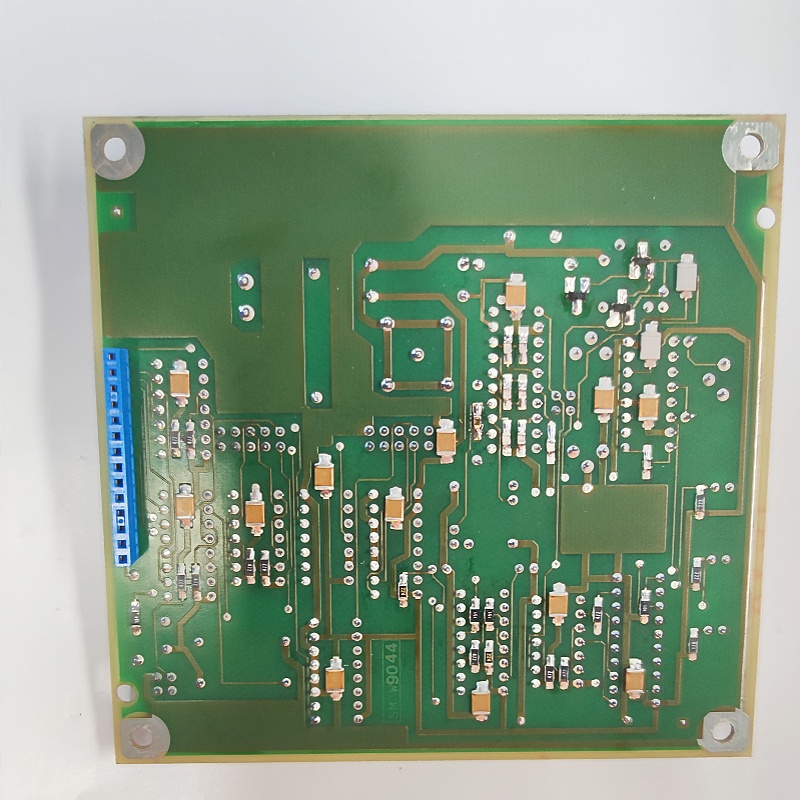

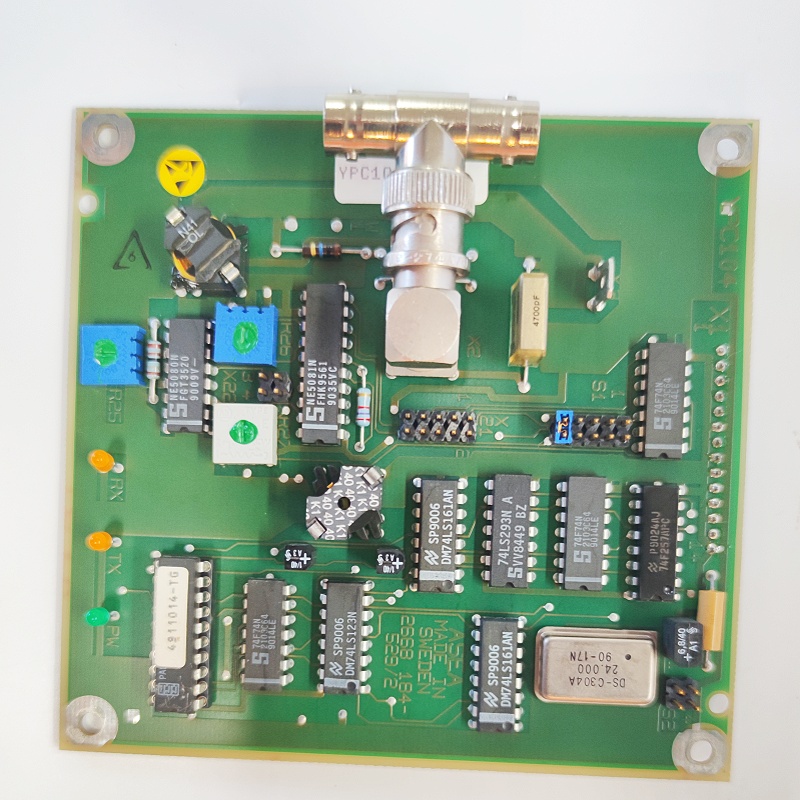

ABB YPC104B YT204001-BT

The ABB YPC104B YT204001-BT is a small-sized, high-performance module launched by ABB, suitable for fields such as industrial automation, machinery manufacturing, packaging and printing. This module features fast response, high-precision control, strong overload capacity, and high reliability, making it applicable to various industrial applications.
Parameters

1. Model: YPC104B YT204001-BT
2. Voltage: 24V DC
3. Current: 4A
4. Power: 96W
5. Frequency: 0.5Hz-150Hz
6. Cooling method: Natural cooling
7. Enclosure protection rating: IP20
8. Installation method: Wall-mounted or DIN rail mounting
9. Dimensions: 104mm x 40mm x 22mm
10. Weight: 0.25 kg
11. Operating temperature range: -20℃ to 70℃
12. Storage temperature range: -40℃ to +85℃
13. Communication interfaces: Ethernet, RS485
14. Digital input/output: 10 digital inputs, 4 digital outputs
15. Programming languages: Structured Text (ST), Ladder Diagram (LD), Function Block Diagram (FBD)

Product Features

Fast response: The module has a fast response time, enabling it to quickly respond to load changes and ensure stable motor operation.
High-precision control: It provides high-precision control capabilities, suitable for industrial applications requiring precise control.
Strong overload capacity: The module can operate stably under overload conditions, protecting the motor from damage.
High reliability: Made of high-quality components and subjected to rigorous testing, it offers high reliability and a long service life.
Easy to use: Equipped with a user-friendly interface and rich functions, it is convenient for users to operate.
Modular design: Facilitates installation and maintenance, allowing quick replacement or upgrade without interrupting existing operations.

Structure and Composition

1. Enclosure material: Metal or fire-resistant plastic
2. Dimensions: 100mm x 100mm x 60mm (PLC version) or 120mm x 100mm x 40mm (Ethernet module version)
3. Operating temperature: -20℃ to +60℃ (PLC version) or -20℃ to +55℃ (modem board version)
4. Protection rating: IP20
5. Communication protocols: Supports industrial Ethernet protocols, RS-485 interface
6. Data rate: 100 Mbps (Ethernet module version), 115.2 kbps (modem board version)

Application Fields

Industrial automation: Suitable for industrial automation control systems, such as in manufacturing, energy, transportation, and other fields.
Machinery manufacturing: Used for automated control in machinery manufacturing.
Packaging and printing: Applicable to automated control in the packaging and printing industry.
Power industry: Used for automated control in power industries such as thermal power plants and nuclear power plants.
Food and beverage industry: Suitable for automated control in food processing plants, beverage factories, etc.
Sewage treatment and water treatment: Applicable to automated control in sewage treatment and water treatment systems.
Oil and gas industry: Used for high-precision pressure measurement in occasions such as oil wells and natural gas transmission pipelines.
Chemical industry: Suitable for high-precision pressure measurement in chemical plants, pharmaceutical factories, etc.
Power generation industry: Used for high-precision pressure measurement in thermal power plants, nuclear power plants, etc.
Transportation: Applicable to automated control in the transportation field.

Installation and Maintenance

1. Installation method: Supports wall-mounted or DIN rail mounting.
2. Installation environment: Should be installed in a dry, well-ventilated environment, away from high temperature, humidity, corrosive gases, etc.
3. Maintenance requirements: The module adopts a modular design, facilitating installation and maintenance, and allows quick replacement or upgrade without interrupting existing operations.
4. Notes:

Before installation, confirm that the power supply voltage is consistent with the product voltage.
Do not reverse the polarity during installation to avoid product damage.
Do not use this product beyond the specified operating temperature range.
